40×60 House Plans (2,400 sq ft) — Free AI Naksha Generator
At 40 × 60 ft — 12.2 × 18.3 m, 2,400 sq ft — the constraint stops being space and starts being choice. A plot this size will take four bedrooms on a single floor, or a smaller house with a garden, a car porch and a courtyard around it. The interesting question is no longer what fits but what you actually want.
That is where describing the house in plain language beats picking from a catalogue. Tell HousePlanAI that you want the kitchen to look onto the garden, that one bedroom should be on the ground floor for a parent, that you would rather have a large living room than a formal dining room — and it drafts a plan around those priorities rather than a generic box.
Start a 40×60 plan — plot size already filled in

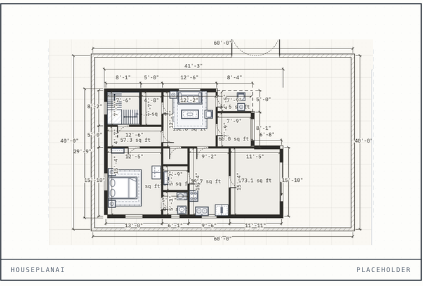

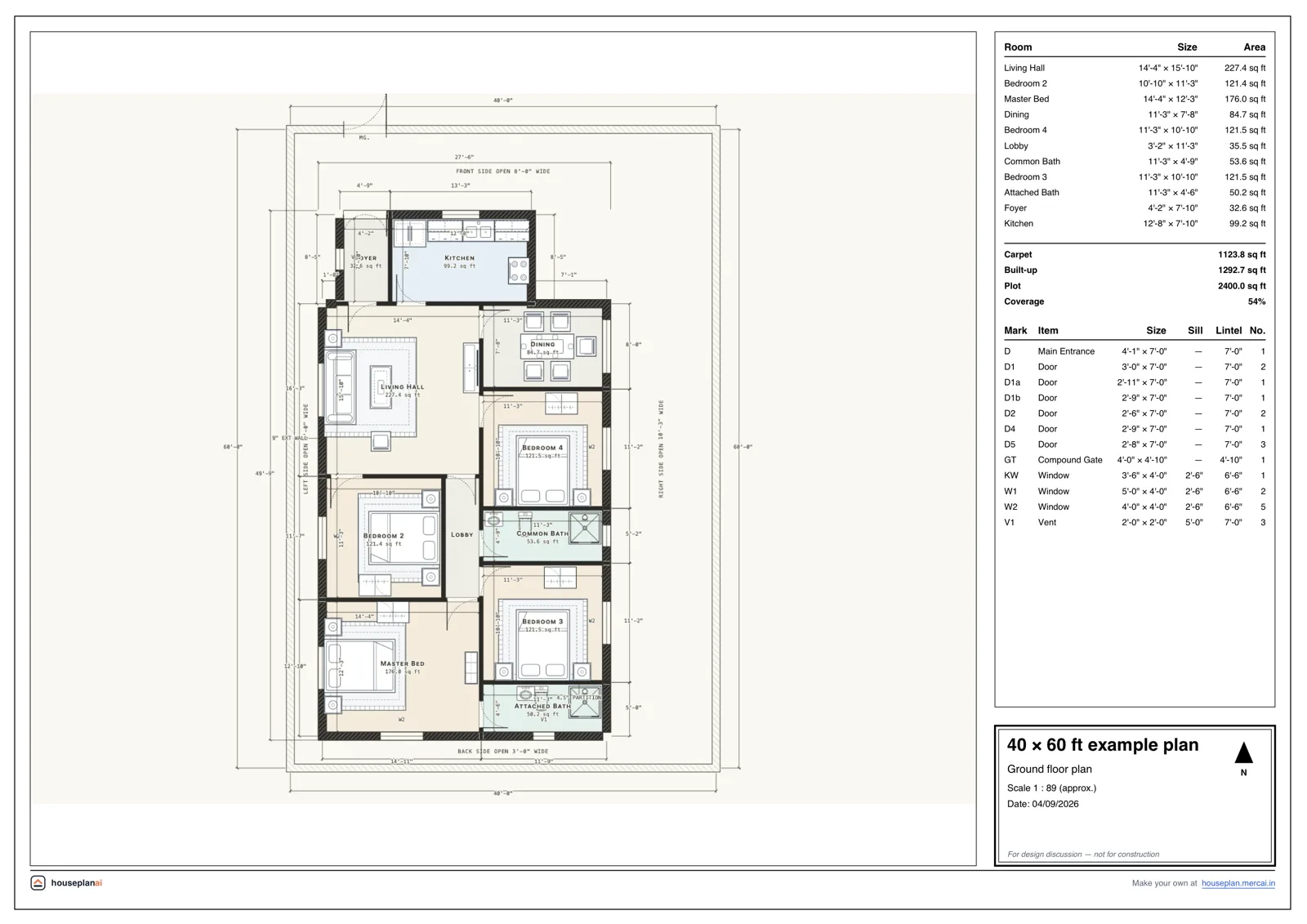

Example 40 × 60 ft plan
What fits on a 40 × 60 ft plot
| What you want | Floors | How it works out |
|---|---|---|
| 4 bedrooms, living, dining, kitchen, 3 bathrooms | Single floor | Fits with room to spare for a utility area and storage. |
| 3 bedrooms plus a courtyard or garden | Single floor | A good use of the extra area if you would rather have outdoor space. |
| 5+ bedrooms, or two self-contained levels | Two floors | Roomy enough for two households, one per floor. |
On a plot this size it is worth using the second floor even if you do not need the bedrooms — an open terrace with a railing costs little and is easy to ask for. HousePlanAI supports stacked floors, staircases cut through the slab above, and terraces, and the 3D walkthrough will take you up the stairs and out onto them.
Setback and coverage rules still decide your real buildable area, and they matter more on a large plot than a small one because there is more to lose. HousePlanAI does not check them for you. Confirm them first, then ask for a plan on the footprint they leave you.
A 40 × 60 ghar ka naksha usually gets drawn two or three times before it settles, and that is the point of generating rather than commissioning: each attempt takes about a minute, so you can find out what a courtyard really costs you in bedroom space instead of arguing about it.
Setbacks and buildable area on a 40 × 60 ft plot
With its defaults HousePlanAI keeps 8 ft open at the front of a 40 × 60, 3 ft at the back and 3 ft down each side, leaving a buildable envelope of about 34 × 49 ft — around 1,666 sq ft of footprint per floor from a 2,400 sq ft plot.
Say you own a car and the front tightens to 5 ft, because the car now has a bay drawn at a front corner instead of a wide strip of unused ground. The envelope grows to about 34 × 52 ft, near 1,768 sq ft a floor. On a plot with this much depth you can also spend the surplus deliberately: ask for a courtyard and the open ground moves into the middle of the house instead of sitting around it.
The generous side of a large plot is exactly where local rules bite hardest, and HousePlanAI applies none of them: setbacks, ground coverage and floor-area ratio are set by your municipality and it neither knows nor checks yours. Look them up before you fix a footprint, then describe the one they leave you.
Variants people search for
East facing, west facing, north facing and south facing 40 × 60 plans are the same plot rotated, not four different designs. The first number is the frontage — the road edge — so a 40 × 60 keeps its 40 ft face to the street whichever way the street points, and only the compass direction of the gate, the entrance and the windows changes. Tell the copilot the facing and it draws it that way round; ask for vaastu and it will weigh the placements too.
Two full floors are straightforward here. G+1 on this envelope comes to roughly 3,165 sq ft of built-up area, which is enough for two self-contained levels — one household per floor, or a rental above — rather than merely more bedrooms. The stair fits without taking anything a room needed, and the first floor can keep part of its area as an open terrace at the front instead of building over all of it.
Two cars are comfortable at this width. One bay wants about 9.5 ft of clear width and 15 ft of length, two side by side about 16 ft, and the envelope here is roughly 34 ft across — so even a double bay at a front corner leaves about 18 ft of frontage for the entrance and the rooms beside it.
Ghar ka naksha for a 40×60 plot
House plan, floor plan, naksha — the same drawing under three names, and this is where you get one. The plot size is already filled in. Answer a few questions about how you live and HousePlanAI drafts a real, scaled plan for it — rooms, doors, windows and stairs — to look over in 2D, walk through in 3D and price. Starting is free and takes no sign-up.
Start a 40 × 60 ft planQuestions people ask
Can I fit a car in a 40×60 plan?
Two, side by side. A single bay needs about 9.5 ft of clear width and 15 ft of length, a double about 16 ft, and a 40 × 60 leaves an envelope roughly 34 ft across — so a double bay at a front corner still leaves about 18 ft of frontage for the entrance and the rooms next to it. HousePlanAI draws the bay as open ground with the compound wall left open across it.
Is 3BHK possible on 40×60?
Easily, and with space left over. The buildable envelope with HousePlanAI's default setbacks is about 34 × 49 ft — near 1,666 sq ft on one floor — which takes four bedrooms comfortably. At this size the more useful question is what to do with the surplus: a third bedroom suite, a courtyard, a larger living room, or simply a garden.
What does a 40×60 house cost to build?
Approximately ₹31–40 lakh for a single floor on this plot, and ₹59–75 lakh for a G+1. Those are rough figures for India, state capitals and large cities — the app's default Indian rate of ₹1,800 per built-up sq ft at standard quality — covering structure, flooring, doors and windows, wall finishes and the compound wall. A large house is also where finish choices swing the total hardest; the cost panel in the app re-prices your own plan for your own region and rate.
Should I build the whole plot or leave a garden?
That is genuinely a preference, and it is cheaper to test than to argue about. Generate one plan with four bedrooms across the full footprint and one with three and a garden or courtyard, then walk both in 3D. The difference between them is obvious standing in the living room in a way it is not on paper, and each attempt takes about a minute.
Is HousePlanAI free?
Yes — the AI layout for your plot is free, and your first plan needs no account and no card. Looking around in 2D and 3D, editing by hand and sharing are free too. The exact dimensions and the files of a plan are a one-time purchase, ₹499 for that plan. If you would rather have the plan finished for you, our designer does it for ₹2,999.
Can I edit the floor plan the AI creates?
Yes, and it costs nothing. The AI's plan is a starting point: every wall it draws is a real object with real dimensions rather than a line in a picture. Move walls, resize and rename rooms, and add doors, windows, furniture, stairs and floors as you like — and if it is not the house you pictured at all, change your brief and generate again.
Can I edit the plan by chatting?
Yes. Once a plan is drawn, type what you want in plain words — “make the kitchen 2 ft wider”, “rename bedroom 2 to Study”, “add a window to the kitchen”, “swap the bedrooms” — and the copilot makes the change on the plan you already have. It answers questions about the plan too, like “how big is the master bedroom?”. A bigger change, such as “make it 3 BHK” or “make it vastu compliant”, needs a fresh layout, so it offers to redraw the whole plan and asks before it does. It understands Hindi and Hinglish as well as English, and when it cannot do something it says so plainly. Editing by hand never costs anything.

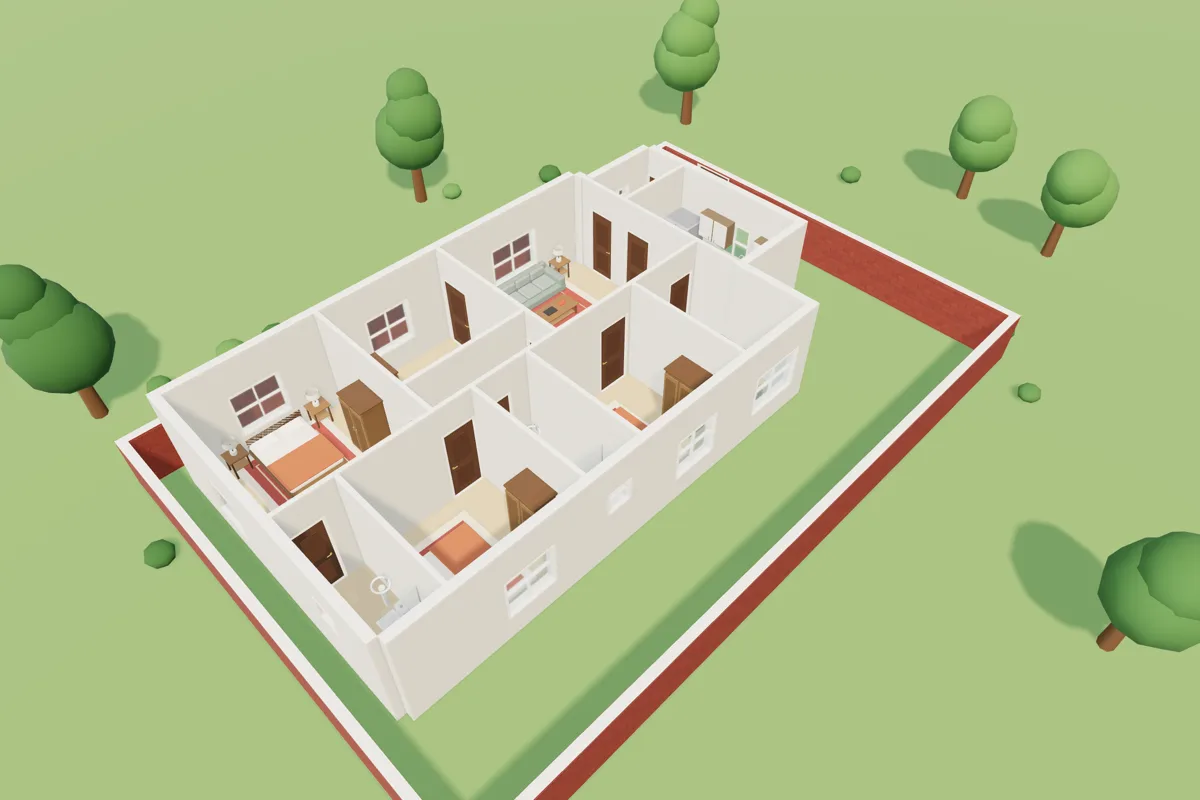

Can I see my house in 3D?
Yes. Any plan can be viewed as a 3D model with walls, floors, doors, windows and furniture in place. You can take a guided walk in from the street or move through the rooms yourself, and the model is built from the plan itself, so it always shows the house as currently drawn.
What plot sizes does it support?
Any size. Common sizes are one tap away in both feet and metres — 20×30, 30×40, 30×50 and 40×60 ft, or 9×12 and 10×15 m — and you can type your own width and depth instead. Switch between feet and metres whenever you like.
Can I download my plan?
Yes. A plan's dimensioned plan sheet is a one-time purchase in the editor, ₹499 for that plan: every measurement, the door and window schedule and a title block, together with the plan's image and its plan file, without a watermark. Sending someone a share link is free, and opening a link someone sends you is free too, with no account on their side.
Can a designer finish my plan for me?
Yes. Our designer takes your AI layout (or a sketch, or just your plot details), fits it to your plot boundary and setbacks, dimensions every room, adds a door and window schedule, checks vastu if you follow it, and delivers a print-ready sheet in 48–72 hours for ₹2,999, one-time, with 2 rounds of changes included. It starts with a WhatsApp message, and the conversation is free.
Do I need an account?
No. Open the app and start describing your house straight away — no sign-up, no email, no card. An account is only useful if you want your plans saved to the cloud so you can pick them up on another device.
