35×50 House Plans (1,750 sq ft) — Free AI Naksha Generator
A 35 × 50 ft plot — 10.7 × 15.2 m, 1,750 sq ft — is one of the easier sizes to plan, because neither dimension dominates. Five extra feet of frontage over a 30 ft plot sounds like nothing and behaves like a lot: rooms can sit side by side across the width instead of queueing front to back, so the house stops being a corridor with doors off it.
What that buys, in practice, is a separate dining area. Three bedrooms, a living room, a kitchen and a dining space that is its own room rather than a corner of another one all fit on a single floor here. Describe your household to HousePlanAI — the bedrooms, whether the dining is separate, which way the road runs — and it drafts the 35 × 50 with every room sized and connected, the doors and windows placed and the plot's boundary wall drawn.
Start a 35×50 plan — plot size already filled in

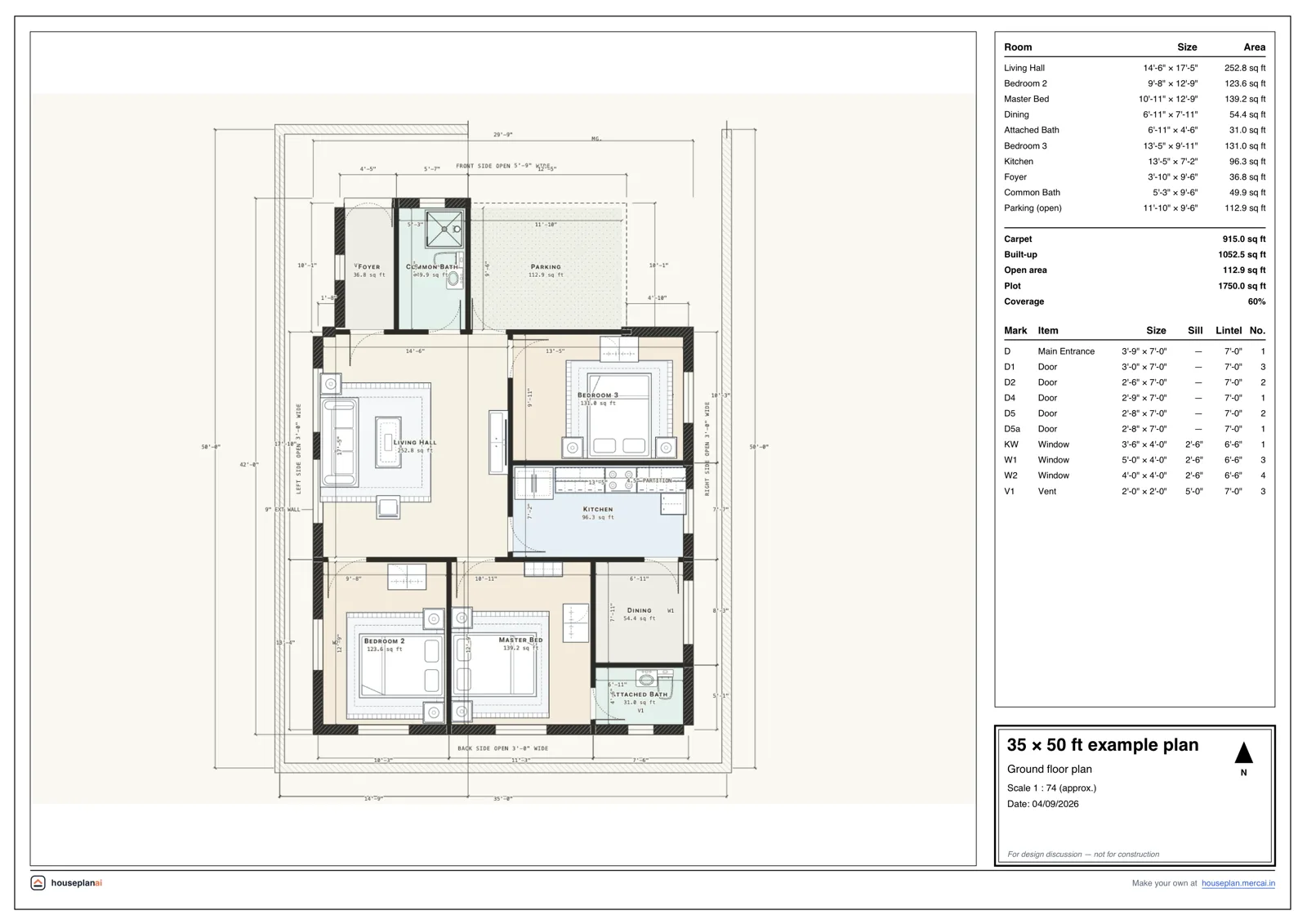

Example 35 × 50 ft plan
What fits on a 35 × 50 ft plot
| What you want | Floors | How it works out |
|---|---|---|
| 3 bedrooms, living, separate dining, kitchen, 2 bathrooms | Single floor | The comfortable layout at this size, and the one most people are after. |
| 4 bedrooms, living, kitchen, 2 bathrooms | Single floor | Fits, but tightly — the fourth bedroom comes out of the living and dining space. |
| 4 bedrooms with an upstairs sitting area or terrace | Two floors | The unhurried version of the same brief. Ask for two floors and the stair is drawn with it. |
Because the house is only about as deep as it is wide, no room ends up far from the front door and no long passage is needed to reach one. The question this size actually asks is which rooms get the frontage: the living room facing the road is the conventional answer, but a bedroom at the front with the living room opening to the rear garden is often the nicer house. Both take a minute to generate, and the difference is far more obvious walking them in 3D than comparing two drawings.
A 35 ft frontage is also the point at which two cars stop being a fight. That matters more than it sounds, because parking taken across the front is space the house never gets back.
How much of the 1,750 sq ft is genuinely buildable is decided by your local setback and coverage rules, not by this page. They differ from one municipality to the next and HousePlanAI neither knows nor checks them. Look yours up first, then describe the footprint they leave you and the plan is drawn to that instead.
Setbacks and buildable area on a 35 × 50 ft plot
Left to its defaults HousePlanAI keeps 8 ft of open ground at the front of a 35 × 50, 3 ft at the back and 3 ft down each side, which keeps every face of the house able to take a window. That leaves a buildable envelope of about 29 × 39 ft — roughly 1,131 sq ft of footprint per floor from a 1,750 sq ft plot.
Tell it you own a car and the front tightens to 5 ft, because the car now has a bay of its own at a front corner rather than a strip of unused ground across the whole frontage. The envelope grows to about 29 × 42 ft, near 1,218 sq ft a floor — the 3 ft of depth that frees up is roughly a utility area, or the difference between a snug kitchen and a comfortable one.
Those numbers are HousePlanAI's own defaults and nothing more. Setback distances, ground coverage and floor-area limits are set locally, vary widely, and the generator applies none of them and verifies none of them. Confirm what your plot is actually allowed before you fix a footprint.
Variants people search for
East facing, west facing, north facing and south facing 35 × 50 plans are one plot rotated, not four separate designs. The first number is the frontage — the edge the road runs along — so a 35 × 50 keeps its 35 ft face to the street whichever way that street points; what changes is the compass direction of the gate, the main door and the windows. Tell HousePlanAI which way yours faces and it draws it that way round, and if you ask for vaastu it will weigh the placements too.
A 35 × 50 duplex turns the tight four-bedroom plan into an easy one. Two floors on this envelope come to roughly 2,149 sq ft of built-up area, minus what the stair takes out of each level — enough for four bedrooms, a separate upstairs sitting area, or a self-contained floor to rent. The generator never decides on its own that a brief needs a second storey — when one floor cannot hold what you asked for, it squeezes the rooms instead. So ask for two floors explicitly, and you get the stair, the landing, the stairwell opening in the slab above, and an open first-floor terrace at the front with a railing if you want one.
Parking is workable at this width rather than merely possible. One bay needs about 9.5 ft of clear width and 15 ft of length, two side by side about 16 ft, and the envelope here is roughly 29 ft across — so a double bay at a front corner still leaves about 13 ft of frontage for the entrance and the room beside it. One car leaves about 19.5 ft, which is most of the front of the house.
Ghar ka naksha for a 35×50 plot
House plan, floor plan, naksha — the same drawing under three names, and this is where you get one. The plot size is already filled in. Answer a few questions about how you live and HousePlanAI drafts a real, scaled plan for it — rooms, doors, windows and stairs — to look over in 2D, walk through in 3D and price. Starting is free and takes no sign-up.
Start a 35 × 50 ft planQuestions people ask
Can I fit a car in a 35×50 plan?
Yes, and two is realistic. A single bay needs about 9.5 ft of clear width and 15 ft of length, a double about 16 ft, and a 35 × 50 leaves an envelope roughly 29 ft across — so even two cars side by side at a front corner keep about 13 ft of frontage for the entrance and the room next to it. HousePlanAI draws the bay as open ground with the compound wall left open across it.
Is 3BHK possible on 35×50?
Yes, comfortably, and with a separate dining area rather than a dining corner. The buildable envelope with HousePlanAI's default setbacks is about 29 × 39 ft — near 1,131 sq ft — and the 29 ft width is what lets two bedrooms sit across from each other instead of one behind the other. A fourth bedroom does fit on one floor, but it is taken out of the living space; as a G+1 it is unhurried.
What does a 35×50 house cost to build?
Approximately ₹21–27 lakh for a single floor on this plot, and ₹40–51 lakh for a G+1. Those are rough figures for India, state capitals and large cities — the app's default Indian rate of ₹1,800 per built-up sq ft at standard quality — and they cover structure, flooring, doors and windows, wall finishes and the compound wall. Costs move a long way with the city, the specification and the finish; the cost panel in the app re-prices your own plan for your own region and lets you type your builder's rate over ours.
Is 35×50 better than 30×60 for the same money?
They are close in plot area and quite different to live in. The extra frontage on a 35 × 50 lets rooms pair across the width, which usually means less circulation and a shorter walk from the front door; the deeper plot gives more separation between the road and the bedrooms. The envelope here works out at about 1,131 sq ft a floor. If you have not bought yet, generate the same brief on both and compare — that is a cheaper way to decide than reasoning about it.
What do I get when I generate a 35×50 ghar ka naksha here?
A real, scaled plan of your brief on the 35 × 50 plot: rooms at their true sizes, walls, doors and windows placed, the staircase drawn if you asked for two floors, and the compound wall around the plot. You can look it over in 2D, walk through it in 3D and price the build. What it is not is an approved drawing — it does not check your local setback, coverage or code requirements, and a builder or architect should review it before anything is dug.
Is HousePlanAI free?
Yes — the AI layout for your plot is free, and your first plan needs no account and no card. Looking around in 2D and 3D, editing by hand and sharing are free too. The exact dimensions and the files of a plan are a one-time purchase, ₹499 for that plan. If you would rather have the plan finished for you, our designer does it for ₹2,999.
Can I edit the floor plan the AI creates?
Yes, and it costs nothing. The AI's plan is a starting point: every wall it draws is a real object with real dimensions rather than a line in a picture. Move walls, resize and rename rooms, and add doors, windows, furniture, stairs and floors as you like — and if it is not the house you pictured at all, change your brief and generate again.
Can I edit the plan by chatting?
Yes. Once a plan is drawn, type what you want in plain words — “make the kitchen 2 ft wider”, “rename bedroom 2 to Study”, “add a window to the kitchen”, “swap the bedrooms” — and the copilot makes the change on the plan you already have. It answers questions about the plan too, like “how big is the master bedroom?”. A bigger change, such as “make it 3 BHK” or “make it vastu compliant”, needs a fresh layout, so it offers to redraw the whole plan and asks before it does. It understands Hindi and Hinglish as well as English, and when it cannot do something it says so plainly. Editing by hand never costs anything.
Can I see my house in 3D?
Yes. Any plan can be viewed as a 3D model with walls, floors, doors, windows and furniture in place. You can take a guided walk in from the street or move through the rooms yourself, and the model is built from the plan itself, so it always shows the house as currently drawn.
What plot sizes does it support?
Any size. Common sizes are one tap away in both feet and metres — 20×30, 30×40, 30×50 and 40×60 ft, or 9×12 and 10×15 m — and you can type your own width and depth instead. Switch between feet and metres whenever you like.
Can I download my plan?
Yes. A plan's dimensioned plan sheet is a one-time purchase in the editor, ₹499 for that plan: every measurement, the door and window schedule and a title block, together with the plan's image and its plan file, without a watermark. Sending someone a share link is free, and opening a link someone sends you is free too, with no account on their side.
Can a designer finish my plan for me?
Yes. Our designer takes your AI layout (or a sketch, or just your plot details), fits it to your plot boundary and setbacks, dimensions every room, adds a door and window schedule, checks vastu if you follow it, and delivers a print-ready sheet in 48–72 hours for ₹2,999, one-time, with 2 rounds of changes included. It starts with a WhatsApp message, and the conversation is free.
Do I need an account?
No. Open the app and start describing your house straight away — no sign-up, no email, no card. An account is only useful if you want your plans saved to the cloud so you can pick them up on another device.
