10×15 m House Plans (150 m²) — Free AI Naksha Generator
A 10 × 15 m plot is 150 m², or about 1,615 sq ft — a comfortable family site with enough depth to separate the parts of the house that guests see from the parts that they do not. That separation is the thing worth spending the extra depth on: living and dining towards the road, bedrooms towards the back.
Describe the household to HousePlanAI in your own words — how many people, whether anyone works from home, whether you want the kitchen open to the dining area — and it drafts a plan on the 10 × 15 footprint with rooms sized, connected and given doors and windows. Everything it draws is real geometry — walls, doors and windows with true dimensions — to look over in 2D and walk through in 3D.
Start a 10×15 m plan — plot size already filled in

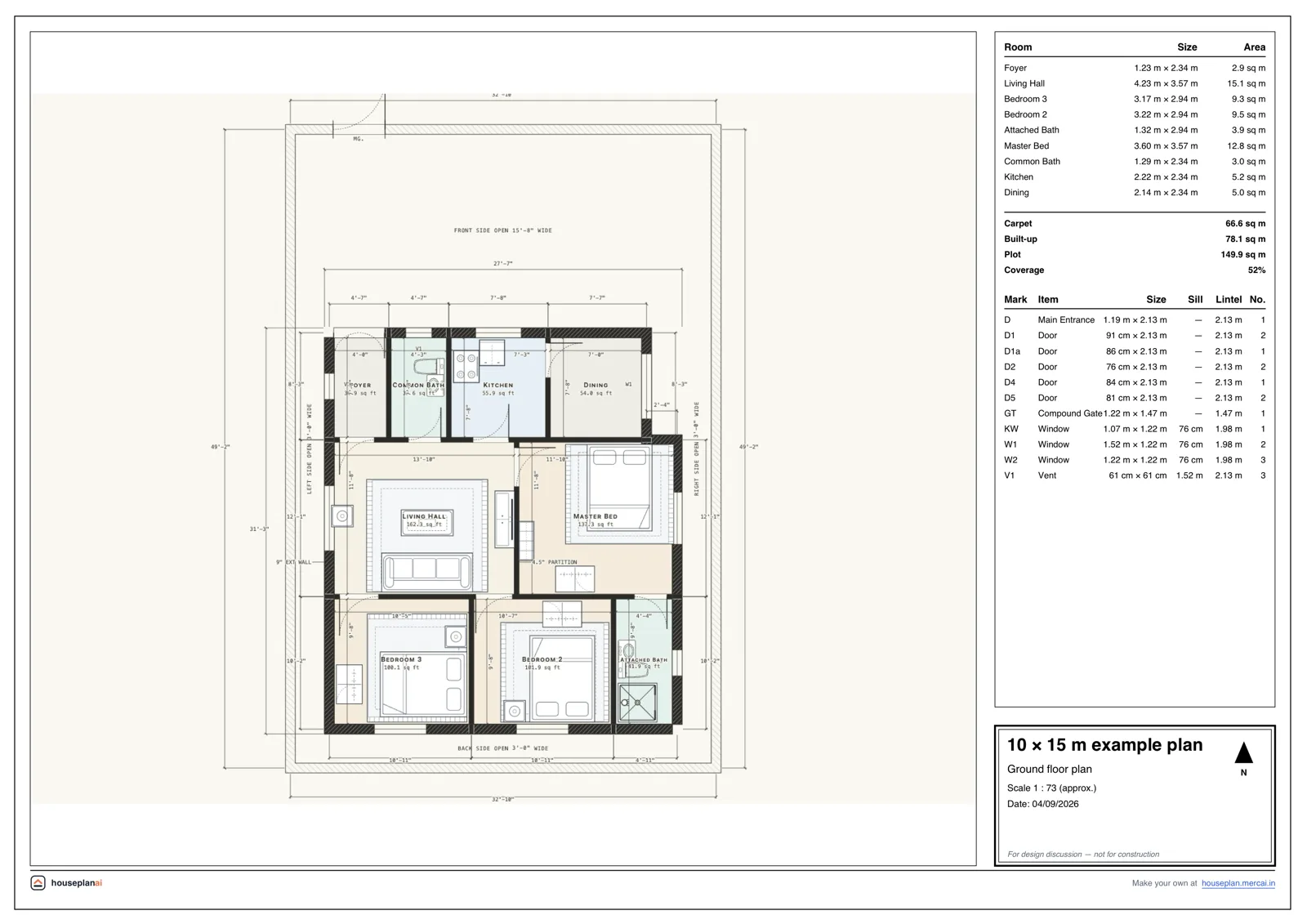

Example 10 × 15 m plan
What fits on a 10 × 15 m plot
| What you want | Floors | How it works out |
|---|---|---|
| 3 bedrooms, living, dining, kitchen, 2 bathrooms | Single floor | Comfortable, with room for a utility area and storage. |
| 2 bedrooms with a large living space and garden | Single floor | A good option if outdoor space matters more than a third bedroom. |
| 4–5 bedrooms, or a separate upstairs living area | Two floors | The extra depth means the stair does not crowd the ground floor. |
With 15 m of depth the risk is a long internal corridor doing nothing but connecting rooms. The generator keeps circulation short and gives every habitable room an exterior wall, and the 3D walkthrough is where you check it — a dead corridor is obvious to walk down in a way it is not to look at.
Your buildable area is whatever local setback and coverage rules leave you, and HousePlanAI neither knows nor checks those. Find out the number first, and describe that footprint rather than the full plot.
A 10×15 ghar ka naksha in metric is the same drawing you would get in feet — room sizes, door positions and the compound wall around the plot — with every dimension written in metres instead.
Setbacks and buildable area on a 10 × 15 m plot
At 150 m² a 10 × 15 is planned by detached rules, so HousePlanAI keeps 0.9 m (3 ft) clear down each side and 0.9 m (3 ft) at the back, which is what lets every side of the house take a window. 2.4 m (8 ft) stays open at the front for the approach and the gate, leaving a buildable envelope of about 8.2 × 11.6 m — 95 m², or 1,024 sq ft, of footprint per floor.
Tell it you own a car and the front gap drops to 1.5 m (5 ft), because the car gets a bay of its own at a front corner rather than a strip of empty ground across the whole frontage. The envelope grows to about 8.2 × 12.6 m — near 103 m² a floor — and on a plot this deep that surplus usually turns into a proper utility area behind the kitchen.
These are HousePlanAI's defaults, not your local rules. Setbacks, ground coverage and floor-area ratios are set by the authority the plot sits under and vary a great deal; the generator does not know yours and does not check them. Confirm them first, then describe the footprint they leave you and the plan is drawn to that.
Variants people search for
East facing, west facing, north facing and south facing 10 × 15 m plans are the same plot turned. The first dimension is the frontage — the road edge — so the 10 m face stays to the street whichever way that street points, and only the direction of the gate, the entrance and the windows changes with it. Say which way yours faces and HousePlanAI draws it accordingly.
Two floors are easy at this size. G+1 on this envelope comes to roughly 181 m² (1,946 sq ft) of built-up area, enough for five bedrooms or for a self-contained upper level. The depth is what makes it painless: the stair can sit off the living space rather than in the middle of it, and the first floor can keep part of its area as an open terrace at the front.
Parking is comfortable. One bay wants about 2.9 m (9.5 ft) of clear width and 4.6 m (15 ft) of length; at a front corner of an 8.2 m-wide envelope that still leaves roughly 5.3 m across the front for the entrance and a room beside it. Two cars side by side need close to 4.9 m and fit at this width, though the front row then becomes mostly bay.
Ghar ka naksha for a 10×15 m plot
House plan, floor plan, naksha — the same drawing under three names, and this is where you get one. The plot size is already filled in. Answer a few questions about how you live and HousePlanAI drafts a real, scaled plan for it — rooms, doors, windows and stairs — to look over in 2D, walk through in 3D and price. Starting is free and takes no sign-up.
Start a 10 × 15 m planQuestions people ask
Can I fit a car in a 10×15 m plan?
Yes, comfortably — and two side by side will fit if you are willing to give the front row to them. A single bay needs about 2.9 m (9.5 ft) of clear width and 4.6 m (15 ft) of length, and HousePlanAI draws it as open ground at a front corner with the compound wall left open across it. On the roughly 8.2 m-wide envelope a 10 × 15 leaves, one bay still keeps about 5.3 m of frontage for the entrance and the room next to it.
Is 3BHK possible on 10×15 m?
Yes, comfortably on a single floor, with room left for a utility area and storage. The buildable envelope with HousePlanAI's default setbacks is about 8.2 × 11.6 m — 95 m², near 1,024 sq ft. Four or five bedrooms are a two-floor question, and the depth means the staircase does not crowd the ground floor when you ask for them.
What does a 10×15 m house cost to build?
Approximately ₹19–24 lakh for a single floor on this plot, and ₹36–46 lakh for two floors. Those are rough figures for India, state capitals and large cities — the app's default Indian rate of ₹1,800 per built-up sq ft at standard quality — covering structure, flooring, doors and windows, wall finishes and the compound wall. Build rates differ enormously by country; the cost panel in the app re-prices the plan for your own region and lets you type your builder's rate over ours.
How do you stop a deep plot turning into a long corridor?
By keeping circulation short and giving every habitable room an exterior wall, which is what the generator optimises for. On a 15 m depth the usual arrangement is public rooms towards the road and bedrooms towards the back, with the connection between them as short as the room sizes allow. Walking the result in 3D is the fastest way to tell whether it worked.
Is HousePlanAI free?
You can start without a card and without an account: describe your house, generate a plan and look around it in 2D and in 3D. A free account is optional, and what it gives you is your plans kept in the cloud rather than only in this browser. If a price applies to anything beyond that, you will see it before you pay, and it is one payment rather than a subscription.
Can I edit the floor plan the AI creates?
The AI's plan is a starting point, not a finished answer. Every wall it draws is a real object with real dimensions rather than a line in a picture, so the rooms and areas are the ones you would actually get. If it is not the house you pictured, change your brief and generate again. Reworking the drawing itself comes with full access; if a price applies, you will see it before you pay, and it is one payment rather than a subscription.
Can I see my house in 3D?
Yes. Any plan can be viewed as a 3D model with walls, floors, doors, windows and furniture in place. You can take a guided walk in from the street or move through the rooms yourself, and the model is built from the plan itself, so it always shows the house as currently drawn.
What plot sizes does it support?
Any size. Common sizes are one tap away in both feet and metres — 20×30, 30×40, 30×50 and 40×60 ft, or 9×12 and 10×15 m — and you can type your own width and depth instead. Switch between feet and metres whenever you like.
Can I download my plan?
A finished plan can leave the browser three ways: as an A3 plan sheet — a PDF with dimensions, room areas and a title block — as an image of the drawing, or as a share link that opens the plan in anyone's browser. Opening a link someone sends you is always free, with no account on their side. If a price applies to taking a plan out, you will see it before you pay, and it is one payment rather than a subscription.
Do I need an account?
No. Open the app and start describing your house straight away — no sign-up, no email, no card. An account is only useful if you want your plans saved to the cloud so you can pick them up on another device.
Other plot sizes
See every plot size, or go straight to the house plan generator and type your own dimensions — any size works, these are just the common ones.
