30×60 House Plans (1,800 sq ft) — Free AI Naksha Generator
A 30 × 60 ft plot — 9.1 × 18.3 m, 1,800 sq ft — is twice as long as it is wide, and that ratio is the whole story. The frontage is modest, so nothing about the plan is decided across the width; everything is decided along the length. Three bedrooms, a living room, a kitchen and a dining area all fit on one floor here, but only if they are arranged in the right order front to back.
That ordering is the part worth getting right before anything else. Public rooms near the road, private rooms deep in the plot, the kitchen where it can reach both the dining area and the back door — get it wrong and you spend the rest of the house's life walking. Tell HousePlanAI how many bedrooms you need, whether the dining area should be its own room, and which way the road runs, and it drafts the 30 × 60 with the rooms sized, the doors and windows placed and the boundary wall drawn, so you can see the sequence rather than imagine it.
Start a 30×60 plan — plot size already filled in

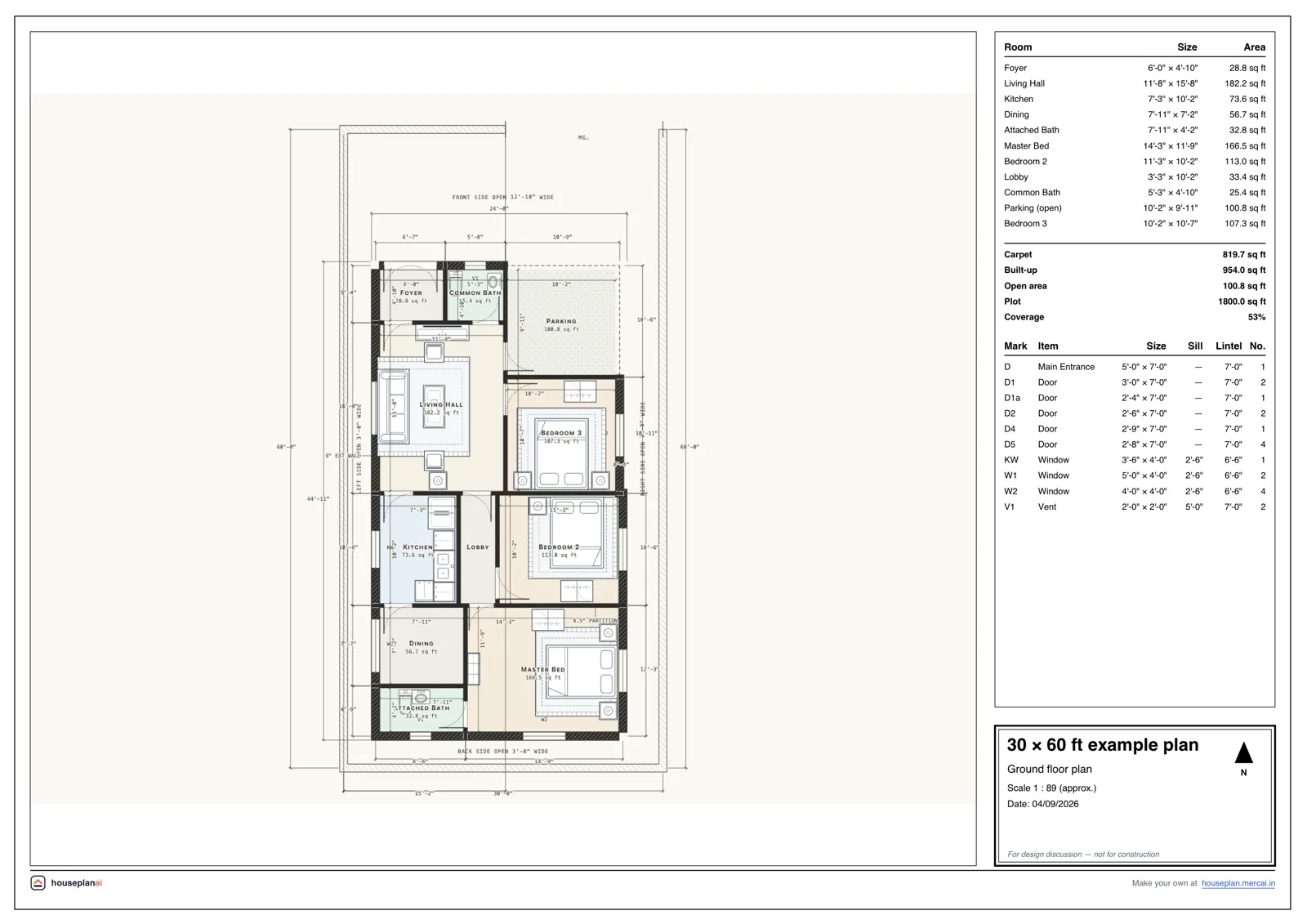

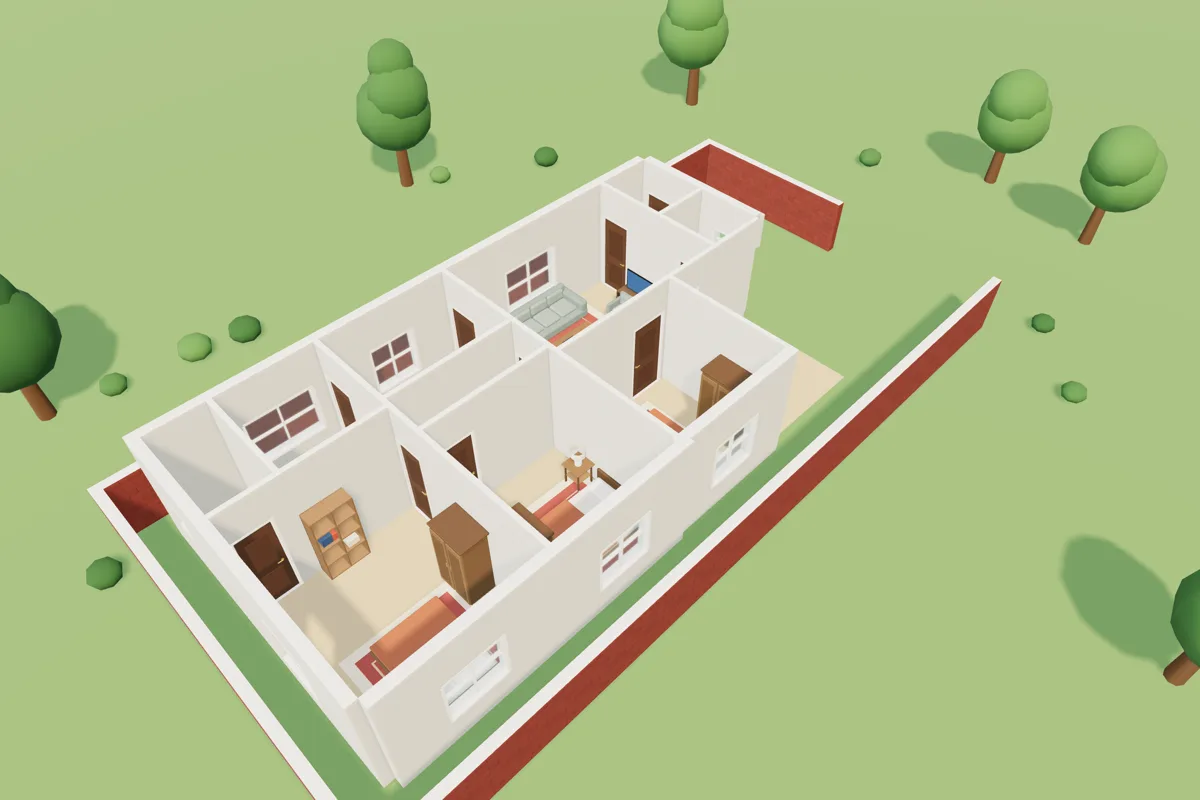

Example 30 × 60 ft plan
What fits on a 30 × 60 ft plot
| What you want | Floors | How it works out |
|---|---|---|
| 3 bedrooms, living, dining, kitchen, 2 bathrooms | Single floor | Comfortable. The depth is what pays for the third bedroom and the separate dining. |
| 2 bedrooms with a study, a utility area and a store | Single floor | Generous rooms rather than more of them — a good use of 60 ft of depth. |
| 4 bedrooms, or three plus an upstairs family room | Two floors | Ask for two floors and the stair, the landing and the stairwell opening are drawn with it. |
The real risk on a plot this shape is not space, it is the corridor. A 60 ft house reached from one end can end up with a long internal passage that eats floor area and gives nothing back, and a room stranded in the middle of a deep, narrow footprint can end up with no outside wall at all. HousePlanAI gives every habitable room an exterior wall and keeps the side and rear gaps clear, so a bedroom never gets buried in the centre — but it is still worth walking the plan in 3D specifically to see how far it is from the front door to the last bedroom.
Splitting the length into two or three zones usually reads better than one continuous run: living and dining near the front, bedrooms behind them, service and utility at the back. Describe it that way in plain words and the generator plans to it.
How much of the 1,800 sq ft you may actually build on is set by your local setback and coverage rules, which vary from one city — sometimes one street — to the next, and which HousePlanAI does not know or check. Find the numbers first, then ask for a plan on the footprint they leave you.
Setbacks and buildable area on a 30 × 60 ft plot
On its defaults HousePlanAI keeps 8 ft of open ground at the front of a 30 × 60, 3 ft at the back and 3 ft down each side, so both long flanks stay clear enough to take windows and move air. That leaves a buildable envelope of about 24 × 49 ft — roughly 1,176 sq ft of footprint per floor out of the plot's 1,800.
Say you own a car and the front tightens to 5 ft, because the car gets a bay of its own at a front corner instead of a strip of empty ground running the full width. The envelope becomes about 24 × 52 ft, near 1,248 sq ft a floor — and on a plot this long the 3 ft that frees up lands at the back, where it usually turns into a proper utility yard.
Note what the side gaps cost at this width: 3 ft on each flank takes the house from 30 ft to 24 ft across, and 24 ft is the number every room in the plan has to live within. Those are HousePlanAI's own defaults, not your municipality's rules — it applies no building code and checks nothing. Confirm what applies to your plot, then describe the footprint it leaves you.
Variants people search for
East facing, west facing, north facing and south facing 30 × 60 plans are the same plot turned, not four different houses. The first number is always the frontage — the edge the road runs along — so a 30 × 60 keeps its 30 ft face to the street whichever compass direction that street points, and only the direction of the gate, the main door and the windows changes with it. Say which way yours faces and HousePlanAI draws it that way round.
A 30 × 60 duplex is the usual answer when four bedrooms are wanted, because the fourth one is easier to find upstairs than to squeeze into a 24 ft width. Two floors on this envelope come to roughly 2,234 sq ft of built-up area, minus what the staircase takes from each level. The generator will not quietly turn a single-floor brief into two storeys when it over-asks — it squeezes the rooms instead — so if you want the second storey, ask for it, and you get the stair, the landing, the stairwell cut through the slab above and, if you want it, an open terrace with a railing at the front of the first floor.
Parking works, within the width. One car needs about 9.5 ft of clear width and 15 ft of length; drawn at a front corner of a 24 ft-wide envelope it leaves roughly 14.5 ft of house across the front row — enough for the entrance and a room beside it. Two cars want about 16 ft side by side, which on a 24 ft envelope is tight but genuinely possible; the front of the house simply becomes mostly bay, and the living space starts a little further back.
Ghar ka naksha for a 30×60 plot
House plan, floor plan, naksha — the same drawing under three names, and this is where you get one. The plot size is already filled in. Answer a few questions about how you live and HousePlanAI drafts a real, scaled plan for it — rooms, doors, windows and stairs — to look over in 2D, walk through in 3D and price. Starting is free and takes no sign-up.
Start a 30 × 60 ft planQuestions people ask
Can I fit a car in a 30×60 plan?
Yes, one car easily. A single bay needs about 9.5 ft of clear width and 15 ft of length, and HousePlanAI draws it as open ground at a front corner with the compound wall left open across it. On the roughly 24 ft-wide envelope a 30 × 60 leaves, that still keeps about 14.5 ft of frontage for the entrance and the room next to it. Two cars need around 16 ft side by side — tight on this width, but possible if you accept that most of the front row becomes parking.
Is 3BHK possible on 30×60?
Yes, comfortably, on a single floor. The buildable envelope with HousePlanAI's default setbacks is about 24 × 49 ft — near 1,176 sq ft — and 60 ft of depth is exactly what lets three bedrooms sit behind a living and dining area without any of them shrinking. A fourth bedroom is where the width starts to argue back, and that is a two-floor question.
What does a 30×60 house cost to build?
Approximately ₹22–28 lakh for a single floor on this plot, and ₹42–53 lakh for a G+1 duplex. Those are rough figures for India, state capitals and large cities — the app's default Indian rate of ₹1,800 per built-up sq ft at standard quality — covering structure, flooring, doors and windows, wall finishes and the compound wall. The total moves a long way with the city, the specification and the finish; the cost panel in the app re-prices your own plan for your own region and lets you type your builder's rate over ours.
How do you avoid a long dark corridor on a 30×60?
By breaking the length up rather than running a passage down it. The plans HousePlanAI drafts put a living or dining space in the middle of the depth so the house is crossed through rooms rather than alongside them, and every habitable room keeps an exterior wall for light and cross-ventilation. Whether it has worked is easiest to judge by walking the plan in 3D from the front door to the far bedroom — a dead passage is obvious to walk down in a way it is not to look at on paper.
Is a 30×60 ghar ka naksha different from a floor plan?
No — it is the same drawing under a different name: every room at its real size on the real 1,800 sq ft plot, with the walls, doors and windows where they would actually stand. What HousePlanAI produces is a scaled draft you can look over in 2D, walk through in 3D and price. It is not an architect's stamped drawing, and it does not check your local building rules for you.
Is HousePlanAI free?
You can start without a card and without an account: describe your house, generate a plan and look around it in 2D and in 3D. A free account is optional, and what it gives you is your plans kept in the cloud rather than only in this browser. If a price applies to anything beyond that, you will see it before you pay, and it is one payment rather than a subscription.
Can I edit the floor plan the AI creates?
The AI's plan is a starting point, not a finished answer. Every wall it draws is a real object with real dimensions rather than a line in a picture, so the rooms and areas are the ones you would actually get. If it is not the house you pictured, change your brief and generate again. Reworking the drawing itself comes with full access; if a price applies, you will see it before you pay, and it is one payment rather than a subscription.
Can I see my house in 3D?
Yes. Any plan can be viewed as a 3D model with walls, floors, doors, windows and furniture in place. You can take a guided walk in from the street or move through the rooms yourself, and the model is built from the plan itself, so it always shows the house as currently drawn.
What plot sizes does it support?
Any size. Common sizes are one tap away in both feet and metres — 20×30, 30×40, 30×50 and 40×60 ft, or 9×12 and 10×15 m — and you can type your own width and depth instead. Switch between feet and metres whenever you like.
Can I download my plan?
A finished plan can leave the browser three ways: as an A3 plan sheet — a PDF with dimensions, room areas and a title block — as an image of the drawing, or as a share link that opens the plan in anyone's browser. Opening a link someone sends you is always free, with no account on their side. If a price applies to taking a plan out, you will see it before you pay, and it is one payment rather than a subscription.
Do I need an account?
No. Open the app and start describing your house straight away — no sign-up, no email, no card. An account is only useful if you want your plans saved to the cloud so you can pick them up on another device.
