40×40 House Plans (1,600 sq ft) — Free AI Naksha Generator
A 40 × 40 ft plot — 12.2 × 12.2 m, 1,600 sq ft — is square, and a square plot plans quite differently from a long one. There is no front-to-back sequence to organise, so rooms want to gather around a centre rather than queue along a passage. Done well, that means a central living hall with the bedrooms, kitchen and dining opening off it and almost no corridor at all, which is the most efficient shape a small house can take.
The catch is the depth. Forty feet is a wide frontage but a shallow plot, and the open ground you leave at the front and back comes out of that same forty. Tell HousePlanAI how many bedrooms you need, whether you want a car bay, and which way the road runs, and it drafts the 40 × 40 with the rooms sized and connected, the doors and windows placed and the boundary wall drawn — so you can see what the depth really leaves you rather than estimate it.
Start a 40×40 plan — plot size already filled in

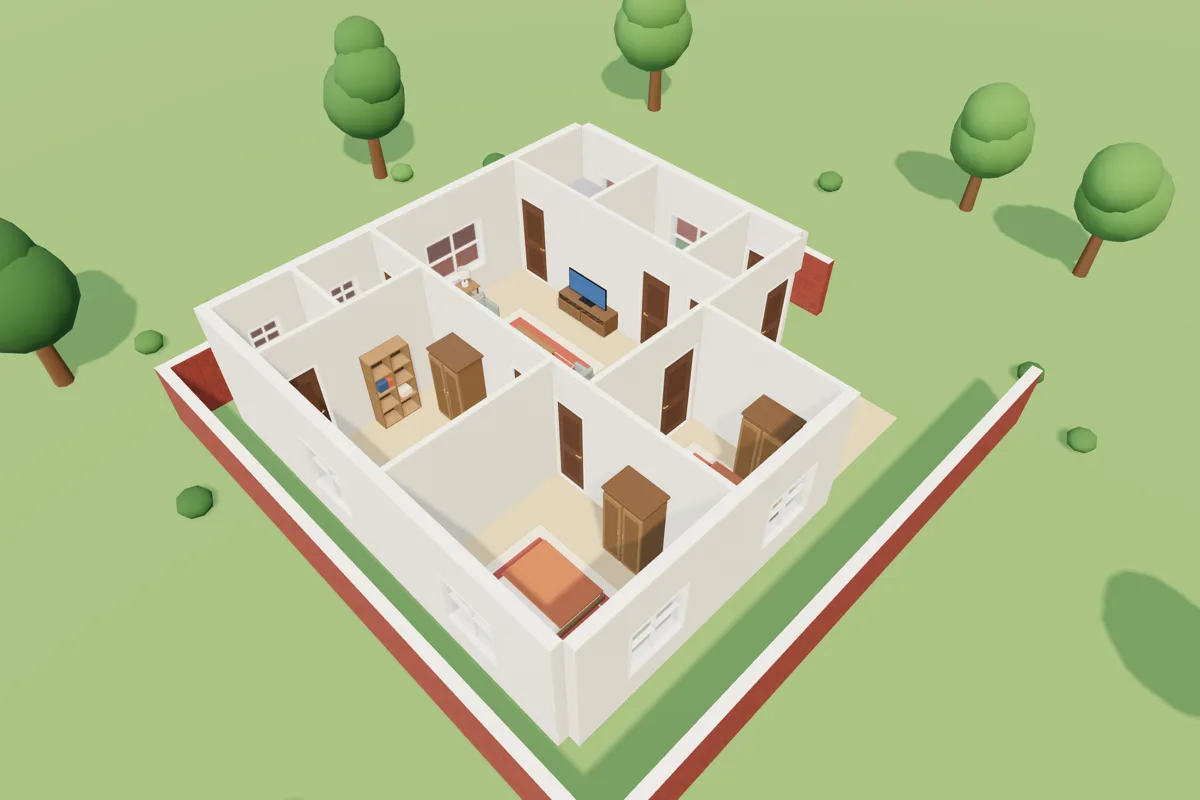

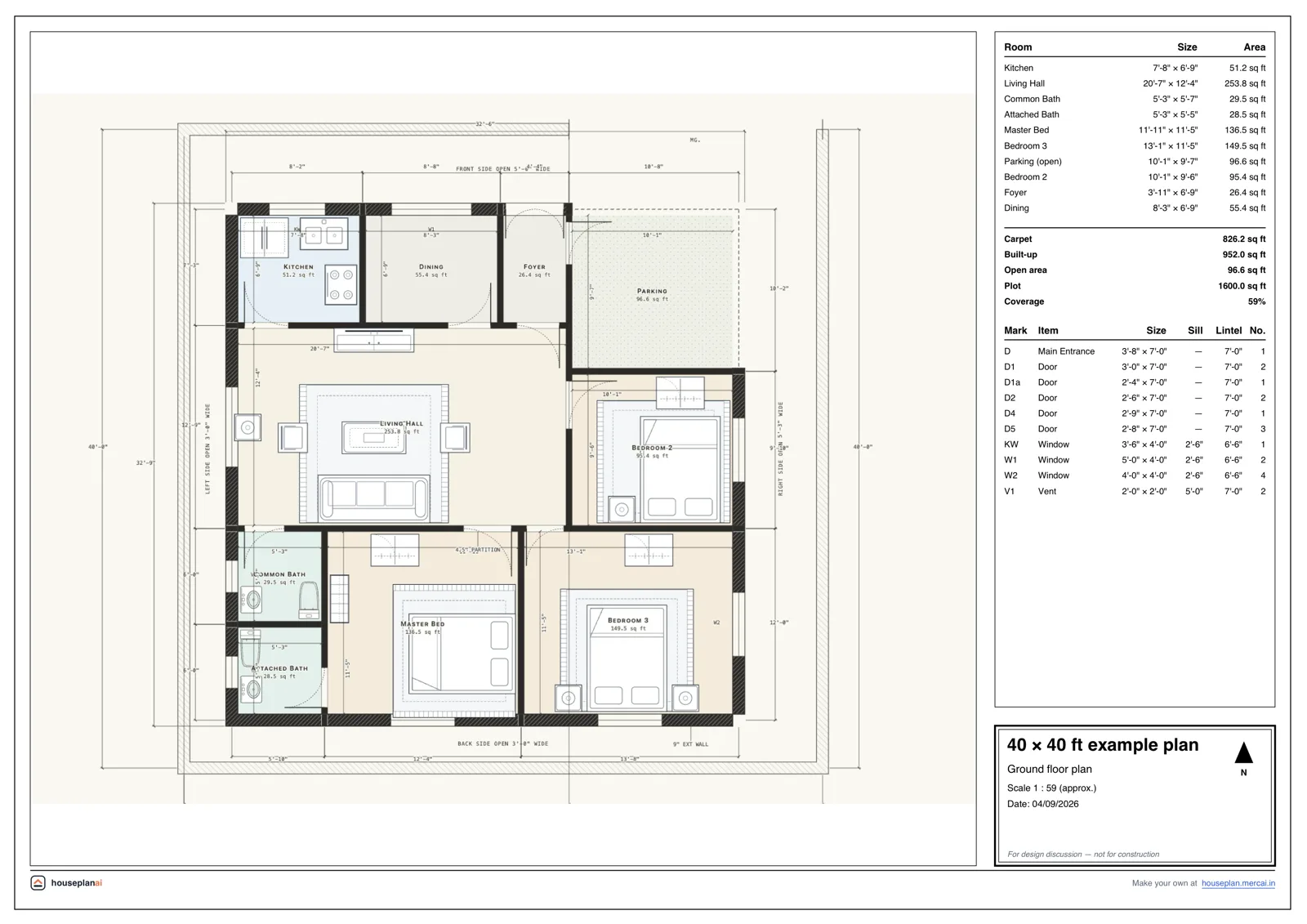

Example 40 × 40 ft plan
What fits on a 40 × 40 ft plot
| What you want | Floors | How it works out |
|---|---|---|
| 2 bedrooms, living, dining, kitchen, 2 bathrooms | Single floor | Roomy, with the living hall at the centre and space left for a utility area. |
| 3 bedrooms, living, kitchen, 2 bathrooms | Single floor | Fits, arranged around the hall — the dining area becomes part of the living space. |
| 4 bedrooms, or three plus an upstairs family room | Two floors | The natural answer here, since the plot has more width than depth to give. |
The number that surprises people on a square plot is the footprint. A 40 × 40 is 1,600 sq ft of land, but the front and back gaps take 11 ft out of only 40 ft of depth — so the default envelope comes out at about 986 sq ft a floor, less than a longer plot of similar area would give. It is not a problem, but it is worth knowing before you plan four bedrooms on one level.
It also explains why the second floor earns its keep here more than on a deep plot: the width is generous, the depth is not, and the cheapest way to buy depth back is to build up. Ask for two floors and you get a real staircase, a landing, the stairwell cut through the slab above and, if you want it, an open terrace with a railing across the front of the first floor.
Whatever the geometry allows, your local setback and coverage rules decide the real buildable area, and they vary from one municipality to the next. HousePlanAI does not know them and does not check them. Look yours up first, then describe the footprint they leave you.
Setbacks and buildable area on a 40 × 40 ft plot
On its defaults HousePlanAI keeps 8 ft of open ground at the front of a 40 × 40, 3 ft at the back and 3 ft down each side, so every face of the house stays clear enough to take a window and move air. That leaves a buildable envelope of about 34 × 29 ft — roughly 986 sq ft of footprint per floor from a 1,600 sq ft plot. Note that the envelope is wider than it is deep even though the plot is square: the front and back gaps do that.
Asking for a car is unusually worthwhile at this size. The front tightens to 5 ft because the car gets a bay of its own at a front corner instead of a strip of empty ground across the whole frontage, and the envelope becomes about 34 × 32 ft — near 1,088 sq ft a floor. On a shallow plot that 3 ft of recovered depth is about a tenth of the whole house.
These are HousePlanAI's own defaults, not a building code. Setbacks, ground coverage and floor-area ratio are set by your municipality, differ street by street, and the generator neither applies them nor verifies them. Confirm what your plot allows, then plan to that.
Variants people search for
East facing, west facing, north facing and south facing 40 × 40 plans are the same plot turned, not four different houses — and on a square plot the turn changes even less than usual, since both dimensions are the same. The first number is still the frontage, the edge the road runs along; what the facing decides is the compass direction of the gate, the main door and the windows. Say which way yours faces and HousePlanAI draws it that way round, and ask for vaastu and it will weigh the placements too.
A 40 × 40 duplex is how four bedrooms fit here without crowding. Two floors on this envelope come to roughly 1,873 sq ft of built-up area, minus what the stair takes from each level. The generator does not quietly promote a single-floor brief to two storeys when it asks for more than the depth can hold — it squeezes the rooms instead — so if you want the second floor, say so, and the stair, the landing and the stairwell opening are drawn with it.
Parking is genuinely comfortable at this width, which is the square plot's best trick. One bay needs about 9.5 ft of clear width and 15 ft of length, two side by side about 16 ft, and the envelope here is roughly 34 ft across — so two cars at a front corner still leave about 18 ft of frontage for the entrance and the room beside it, and one car leaves about 24.5 ft.
Ghar ka naksha for a 40×40 plot
House plan, floor plan, naksha — the same drawing under three names, and this is where you get one. The plot size is already filled in. Answer a few questions about how you live and HousePlanAI drafts a real, scaled plan for it — rooms, doors, windows and stairs — to look over in 2D, walk through in 3D and price. Starting is free and takes no sign-up.
Start a 40 × 40 ft planQuestions people ask
Can I fit a car in a 40×40 plan?
Yes, and two side by side are comfortable. A single bay needs about 9.5 ft of clear width and 15 ft of length, a double about 16 ft, and a 40 × 40 leaves an envelope roughly 34 ft across — so a double bay at a front corner still keeps about 18 ft of frontage for the entrance and the rooms next to it. HousePlanAI draws the bay as open ground with the compound wall left open across it, and asking for it also buys back 3 ft of depth for the house.
Is 3BHK possible on 40×40?
Yes, on a single floor. The buildable envelope with HousePlanAI's default setbacks is about 34 × 29 ft — near 986 sq ft — which takes three bedrooms arranged around a central living hall, with the dining area part of that hall rather than a separate room. Two bedrooms at this size are properly roomy. Four is where the shallow depth starts to argue, and a G+1 is the better answer.
What does a 40×40 house cost to build?
Approximately ₹18–23 lakh for a single floor on this plot, and ₹35–45 lakh for a G+1. Those are rough figures for India, state capitals and large cities — the app's default Indian rate of ₹1,800 per built-up sq ft at standard quality — and they include structure, flooring, doors and windows, wall finishes and the compound wall. The number moves a long way with the city, the specification and the finish; the cost panel in the app re-prices your own plan for your own region and rate.
How should rooms be arranged on a square plot?
Around a centre, not along a spine. On a long plot the plan is a sequence — public rooms at the front, private rooms behind — but a square footprint has no long direction to sequence along, so the efficient arrangement is a central living hall with the kitchen, dining and bedrooms opening directly off it. That removes the corridor almost entirely, which on a plot this size is worth an extra room's worth of floor area. HousePlanAI still gives every habitable room an exterior wall, so nothing ends up landlocked at the centre.
Is a 40×40 ghar ka naksha enough to start building?
It is enough to decide with, not enough to build from. What HousePlanAI drafts is a real, scaled plan of your brief on the 40 × 40 — rooms at their true sizes, walls, doors and windows in place, the compound wall around the plot — which you can look over in 2D, walk through in 3D and price. Structural design, services and local code compliance are a licensed architect or engineer's job, and the setback and coverage rules that apply to your plot are something the app neither knows nor checks.
Is HousePlanAI free?
You can start without a card and without an account: describe your house, generate a plan and look around it in 2D and in 3D. A free account is optional, and what it gives you is your plans kept in the cloud rather than only in this browser. If a price applies to anything beyond that, you will see it before you pay, and it is one payment rather than a subscription.
Can I edit the floor plan the AI creates?
The AI's plan is a starting point, not a finished answer. Every wall it draws is a real object with real dimensions rather than a line in a picture, so the rooms and areas are the ones you would actually get. If it is not the house you pictured, change your brief and generate again. Reworking the drawing itself comes with full access; if a price applies, you will see it before you pay, and it is one payment rather than a subscription.
Can I see my house in 3D?
Yes. Any plan can be viewed as a 3D model with walls, floors, doors, windows and furniture in place. You can take a guided walk in from the street or move through the rooms yourself, and the model is built from the plan itself, so it always shows the house as currently drawn.
What plot sizes does it support?
Any size. Common sizes are one tap away in both feet and metres — 20×30, 30×40, 30×50 and 40×60 ft, or 9×12 and 10×15 m — and you can type your own width and depth instead. Switch between feet and metres whenever you like.
Can I download my plan?
A finished plan can leave the browser three ways: as an A3 plan sheet — a PDF with dimensions, room areas and a title block — as an image of the drawing, or as a share link that opens the plan in anyone's browser. Opening a link someone sends you is always free, with no account on their side. If a price applies to taking a plan out, you will see it before you pay, and it is one payment rather than a subscription.
Do I need an account?
No. Open the app and start describing your house straight away — no sign-up, no email, no card. An account is only useful if you want your plans saved to the cloud so you can pick them up on another device.
