25×40 House Plans (1,000 sq ft) — Free AI Naksha Generator
A 25 × 40 ft plot — 7.6 × 12.2 m, 1,000 sq ft — is the size at which a house stops being a corridor of rooms and starts having a proper cross-section. Five extra feet of frontage over a 20 ft plot does not sound like much, but it is exactly what lets two rooms sit side by side across the width instead of one, and that single change is what makes a comfortable 2BHK straightforward here.
Describe your household to HousePlanAI — how many bedrooms, whether the dining should be its own space or part of the living room, which side the road is on — and it drafts the 25 × 40 footprint with rooms sized and connected, doors and windows placed and the plot's boundary wall drawn. Every wall is a real object at a real dimension, so the areas printed on the plan are the areas you would actually get.
Start a 25×40 plan — plot size already filled in

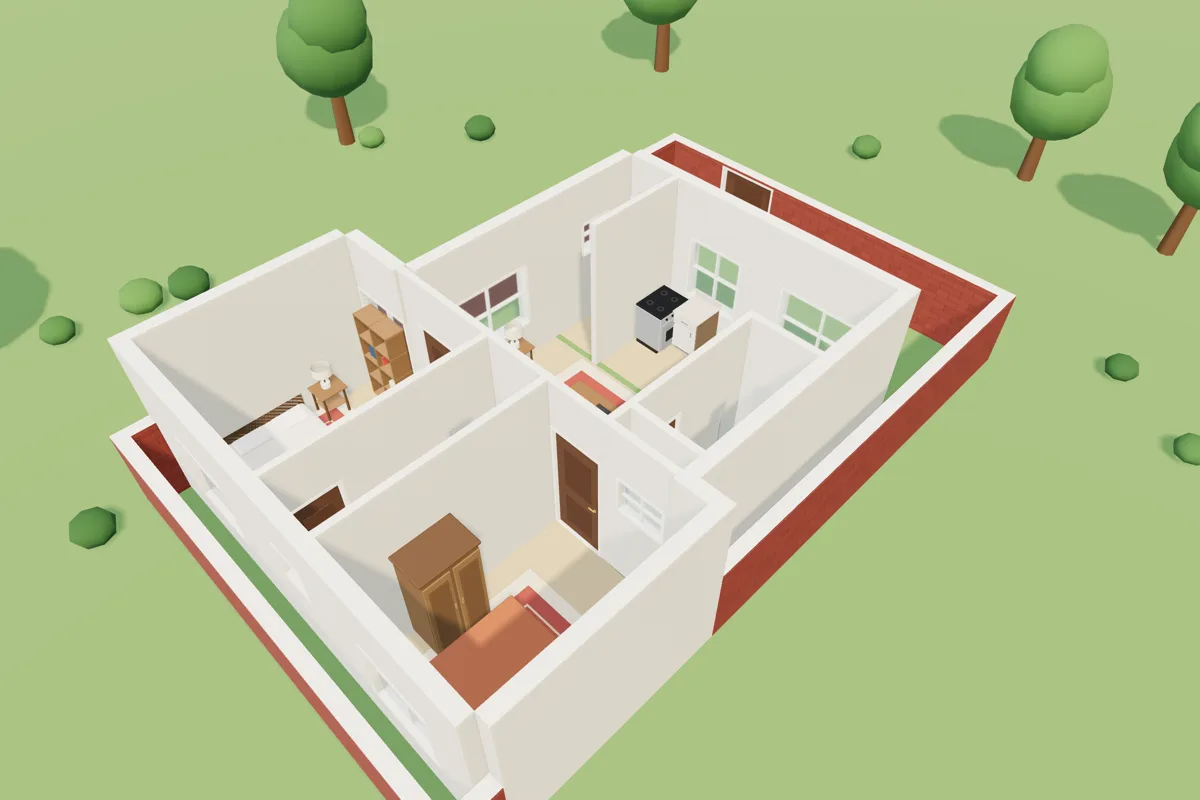

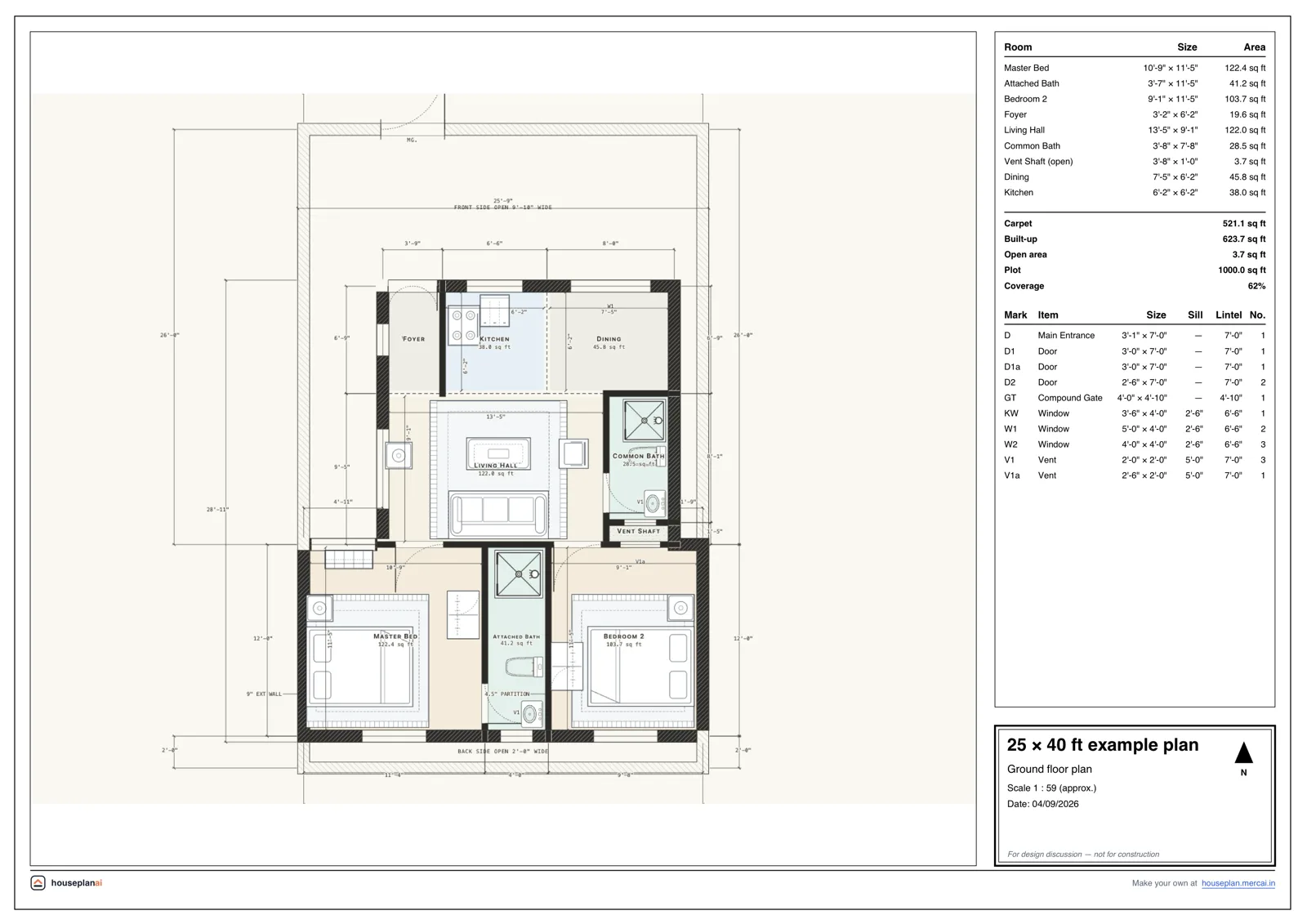

Example 25 × 40 ft plan
What fits on a 25 × 40 ft plot
| What you want | Floors | How it works out |
|---|---|---|
| 2 bedrooms, living, kitchen, 2 bathrooms | Single floor | The layout this plot fits most naturally, with a dining area still in reach. |
| 3 bedrooms, living, kitchen, 2 bathrooms | Single floor | Fits, but all three bedrooms are compact and the dining folds into the living space. |
| 3–4 bedrooms, plus a separate family or dining room | Two floors | Comfortable — the usual choice when the bedrooms should not have to shrink. |
A thousand square feet of plot is not a thousand of house. What you may build on is set by the setback and coverage rules where you live — HousePlanAI does not know them and does not check them — and the plan is easy to redraw to a smaller footprint once you have looked them up.
If a 3BHK on one floor is what you want, ask for it and look at the result honestly: the generator will hold all three bedrooms by compacting them rather than by dropping one, and by folding the dining into the living space. When the rooms come back smaller than you pictured, ask for two floors instead and generate again — each attempt takes about a minute, and the two are much easier to compare side by side than to argue about in the abstract.
The decisions that shape a 25 × 40 ghar ka naksha are which pair of rooms takes the front of the plot and where the kitchen sits relative to the entrance. Get those two right and the rest of the layout tends to follow.
Setbacks and buildable area on a 25 × 40 ft plot
At 1,000 sq ft a 25 × 40 is still small enough that HousePlanAI plans it as a row plot: party walls on both boundaries, no side gap, and the whole 25 ft of frontage built on. Holding a ventilation gap down each side of a plot this size costs more room width than it returns in air, and building to both side boundaries is how sites of this size are usually built.
The open ground goes to the two ends — 4 ft at the front for the entrance and 2 ft at the back as a service strip for a drain, a meter and windows that open. That leaves a buildable envelope of about 25 × 34 ft, roughly 850 sq ft of footprint per floor.
Those numbers are HousePlanAI's defaults, not your municipality's. Some places require a side setback on a plot this size whether or not the neighbours have built to the line, and coverage limits vary street by street. Confirm what applies before you build; if your rules leave you less to build on, describe that footprint instead and the plan is drawn to it.
Variants people search for
East facing, west facing, north facing and south facing 25 × 40 plans are the same plot rotated, not four separate designs. The first number is the frontage — the road edge — so the 25 ft face stays to the street whichever way the street points, and what changes is the compass direction of the entrance and which rooms catch the morning sun. Tell the copilot which way yours faces and the gate, the main door and the windows are placed accordingly.
A 25 × 40 duplex, or G+1, is what most families choose here once the brief passes three bedrooms. Two floors on this envelope come to roughly 1,615 sq ft of built-up area, minus what the staircase takes out of each level. Say two floors when you describe the house — left to itself the generator compacts rooms rather than going upstairs — and the stair, the landing and the stairwell opening in the slab above are all drawn.
Parking works properly at this width. A single bay needs about 9.5 ft of clear width and 15 ft of length, drawn as open ground at a front corner with the compound wall left open across it, and on a 25 ft frontage that still leaves about 15.5 ft across the front of the house — enough for the entrance and a full room beside it. Two cars want about 16 ft side by side, which would take nearly two thirds of the frontage and is a genuine squeeze.
Ghar ka naksha for a 25×40 plot
House plan, floor plan, naksha — the same drawing under three names, and this is where you get one. The plot size is already filled in. Answer a few questions about how you live and HousePlanAI drafts a real, scaled plan for it — rooms, doors, windows and stairs — to look over in 2D, walk through in 3D and price. Starting is free and takes no sign-up.
Start a 25 × 40 ft planQuestions people ask
How many bedrooms fit in a 25×40 house plan?
Two bedrooms fit comfortably on a single floor of a 25 × 40 ft plot, with a living room, kitchen and two bathrooms. A third bedroom fits on the same floor if all three are compact and the dining shares the living space; if you want three full-sized bedrooms, ask for two floors.
Can I fit a car in a 25×40 plan?
Yes, one car without much difficulty. A bay needs about 9.5 ft of clear width and 15 ft of length, and HousePlanAI draws it as open ground at a front corner of the house with the compound wall left open across it. On the 25 ft frontage a 25 × 40 builds on, that leaves roughly 15.5 ft for the entrance and the room next to it. Two cars need about 16 ft side by side and would leave very little front wall for anything else.
Is 3BHK possible on 25×40?
Yes, on one floor, provided you accept compact bedrooms. The buildable envelope is about 25 × 34 ft — near 850 sq ft a floor — and three bedrooms fit into that alongside a living space, a kitchen and two bathrooms if the dining area shares the living room. For three generous bedrooms plus a separate dining room, ask for two floors instead.
What does a 25×40 house cost to build?
Approximately ₹16–20 lakh for a single floor on this plot, and ₹30–38 lakh for a G+1. Those are rough figures for India, state capitals and large cities — the app's default Indian rate of ₹1,800 per built-up sq ft at standard quality — and they cover structure, flooring, doors and windows, wall finishes and the compound wall. Costs move a long way with the city, the specification and the finish; the cost panel in the app re-prices your own plan for your own region and rate.
Is HousePlanAI free?
Yes — the AI layout for your plot is free, and your first plan needs no account and no card. Looking around in 2D and 3D, editing by hand and sharing are free too. The exact dimensions and the files of a plan are a one-time purchase, ₹499 for that plan. If you would rather have the plan finished for you, our designer does it for ₹2,999.
Can I edit the floor plan the AI creates?
Yes, and it costs nothing. The AI's plan is a starting point: every wall it draws is a real object with real dimensions rather than a line in a picture. Move walls, resize and rename rooms, and add doors, windows, furniture, stairs and floors as you like — and if it is not the house you pictured at all, change your brief and generate again.
Can I edit the plan by chatting?
Yes. Once a plan is drawn, type what you want in plain words — “make the kitchen 2 ft wider”, “rename bedroom 2 to Study”, “add a window to the kitchen”, “swap the bedrooms” — and the copilot makes the change on the plan you already have. It answers questions about the plan too, like “how big is the master bedroom?”. A bigger change, such as “make it 3 BHK” or “make it vastu compliant”, needs a fresh layout, so it offers to redraw the whole plan and asks before it does. It understands Hindi and Hinglish as well as English, and when it cannot do something it says so plainly. Editing by hand never costs anything.
Can I see my house in 3D?
Yes. Any plan can be viewed as a 3D model with walls, floors, doors, windows and furniture in place. You can take a guided walk in from the street or move through the rooms yourself, and the model is built from the plan itself, so it always shows the house as currently drawn.
What plot sizes does it support?
Any size. Common sizes are one tap away in both feet and metres — 20×30, 30×40, 30×50 and 40×60 ft, or 9×12 and 10×15 m — and you can type your own width and depth instead. Switch between feet and metres whenever you like.
Can I download my plan?
Yes. A plan's dimensioned plan sheet is a one-time purchase in the editor, ₹499 for that plan: every measurement, the door and window schedule and a title block, together with the plan's image and its plan file, without a watermark. Sending someone a share link is free, and opening a link someone sends you is free too, with no account on their side.
Can a designer finish my plan for me?
Yes. Our designer takes your AI layout (or a sketch, or just your plot details), fits it to your plot boundary and setbacks, dimensions every room, adds a door and window schedule, checks vastu if you follow it, and delivers a print-ready sheet in 48–72 hours for ₹2,999, one-time, with 2 rounds of changes included. It starts with a WhatsApp message, and the conversation is free.
Do I need an account?
No. Open the app and start describing your house straight away — no sign-up, no email, no card. An account is only useful if you want your plans saved to the cloud so you can pick them up on another device.
