25×50 House Plans (1,250 sq ft) — Free AI Naksha Generator
A 25 × 50 ft plot — 7.6 × 15.2 m, 1,250 sq ft — is drawn the way this size is actually built: wall to wall across the frontage, with the open ground kept at the front for the approach and the car and a narrow service strip behind. All 25 ft of the width become house, and the plan reads long and deep, front to back.
Tell HousePlanAI you have a 25 × 50, how many bedrooms you need and which way the road runs, and it drafts the footprint with rooms sized and connected, doors and windows placed, and the plot's boundary drawn around the whole site. Light comes from the front and the back, so the plan puts the rooms that need a window where there is one and vents what is left through a light well — and if you do have open ground down one side, say so and the plan holds it.
Start a 25×50 plan — plot size already filled in

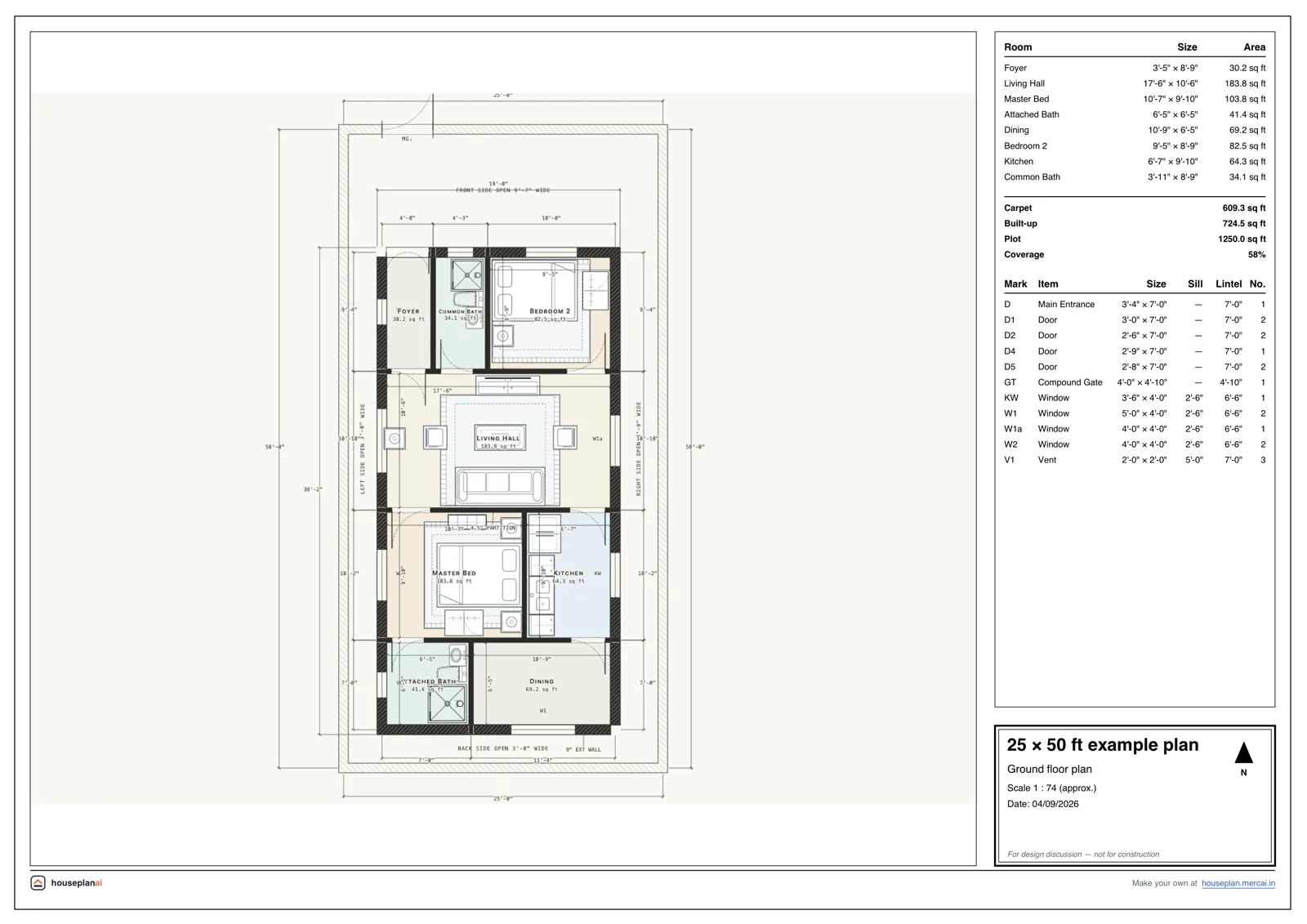

Example 25 × 50 ft plan
What fits on a 25 × 50 ft plot
| What you want | Floors | How it works out |
|---|---|---|
| 2 bedrooms, living, dining, kitchen, 2 bathrooms | Single floor | Comfortable, and every room can have a window on an outside wall. |
| 3 bedrooms, living, kitchen, 2 bathrooms | Single floor | Fits on the full 25 ft of width, with the third bedroom strung along the depth — the middle of the plan is the part to watch for light. |
| 3–4 bedrooms, plus a separate family or dining room | Two floors | The comfortable answer for 3BHK here, and the plot has the depth to carry a stair without crowding anything. |
The trade on a 25 ft frontage is width against light, and HousePlanAI takes the width. The house is drawn the full 25 ft across, on both side lines, which is what every drawn plan we have for this size does — hold three feet back on each hand and a quarter of the frontage goes to two strips too narrow to stand in. What you give up is windows on the long walls, so the plan works front to back: living and parking at the road, the stair and the wet rooms mid-plan, kitchen and a wash strip at the back.
If your plot really does have open ground down a side — a corner site, a lane, a setback your municipality insists on — say so when you describe it and the plan is drawn to that instead, side windows and all. Either way what comes back is the same thing: a ghar ka naksha drawn at real dimensions, with the walls where they would actually stand.
Which of the two is right for you is a local question, and not one the app can answer: setback, coverage and party-wall rules vary from one city — sometimes one street — to the next, and HousePlanAI neither knows them nor checks them. Look yours up before you commit to a footprint.
Setbacks and buildable area on a 25 × 50 ft plot
Left to its defaults, HousePlanAI keeps 5 ft of open ground at the front of a 25 × 50 and 2 ft at the back, and builds to both side lines. That leaves a buildable envelope of about 25 × 43 ft — roughly 1,075 sq ft of footprint per floor out of the plot's 1,250.
Ask for a car and the 5 ft at the front is where it goes: the bay is drawn as open ground at a front corner with the compound wall left open across it, rather than as a strip of empty ground running the width of the house. The envelope does not change — the front gap here is your stated setback either way — so parking costs you a corner of the front row and nothing else.
Those numbers are the generator's own defaults and nothing more. They are not your municipality's rules, and the plan is not a code check. Find out what applies to your plot, then describe those setbacks and the footprint is drawn to them instead.
Variants people search for
East facing, west facing, north facing and south facing 25 × 50 plans are the same plot rotated, not four different houses. The first number is always the frontage — the edge the road runs along — so the 25 ft face stays to the street whichever compass direction that street points. Say which way yours faces and the gate, the main door and the windows are placed for it; with the light coming from the front and the back, that choice decides whether the morning sun reaches the living room or the kitchen.
A 25 × 50 duplex, or G+1, is the usual answer once the brief passes two comfortable bedrooms. Two floors on this envelope come to roughly 2,043 sq ft of built-up area, minus what the staircase takes out of each level, and this plot has the depth to place a stair without it landing in the middle of the living room. Say two floors when you describe the house — left to itself the generator squeezes rooms and folds the dining into the hall rather than going upstairs.
Parking is the one place the frontage bites. A single bay needs about 9.5 ft of clear width and 15 ft of length, and on a 25 ft-wide envelope that leaves about 15.5 ft of house across the front row — enough for the entrance and one room beside it. Two cars want about 16 ft side by side, which this frontage cannot give without the whole front becoming bay.
Ghar ka naksha for a 25×50 plot
House plan, floor plan, naksha — the same drawing under three names, and this is where you get one. The plot size is already filled in. Answer a few questions about how you live and HousePlanAI drafts a real, scaled plan for it — rooms, doors, windows and stairs — to look over in 2D, walk through in 3D and price. Starting is free and takes no sign-up.
Start a 25 × 50 ft planQuestions people ask
Why is a 25×50 house narrower than the plot width suggests?
It is not, any more. A 25 ft frontage is planned as an attached site, so the house is drawn the full 25 ft across, on both side lines, exactly as the drawn plans sold for this size are. What that costs is windows on the long walls: light comes from the front and the back, and the plan is arranged front to back around that. If your plot does have open ground down a side, say so when you describe it and the plan is drawn to that setback instead.
Can I fit a car in a 25×50 plan?
Yes, one car, and it costs you a corner of the front row rather than a strip of the plot. The bay is drawn as open ground at a front corner with the compound wall left open across it, inside the 5 ft the plan already keeps at the front, so the buildable envelope stays about 25 × 43 ft. A bay needs about 9.5 ft of clear width, which leaves roughly 15.5 ft of frontage for the entrance and one room beside it. Two cars need about 16 ft side by side and do not really fit.
Is 3BHK possible on 25×50?
Yes, though the depth carries it rather than the width. The buildable envelope with the default setbacks is about 25 × 43 ft — near 1,075 sq ft a floor — so three bedrooms fit on one floor but come out narrow, strung along the length of the house. For three comfortable bedrooms plus a separate dining room, ask for two floors; the plot has the depth for a stair that does not crowd the rooms around it.
What does a 25×50 house cost to build?
Approximately ₹20–26 lakh for a single floor on this plot, and ₹38–49 lakh for a G+1 duplex. Those are rough figures for India, state capitals and large cities — the app's default Indian rate of ₹1,800 per built-up sq ft at standard quality — and they cover structure, flooring, doors and windows, wall finishes and the compound wall, including the boundary wall, which on an attached site runs across the front and the back rather than right around the plot. The cost panel in the app re-prices your own plan for your own region and lets you type your builder's rate over ours.
Is HousePlanAI free?
Yes — the AI layout for your plot is free, and your first plan needs no account and no card. Looking around in 2D and 3D, editing by hand and sharing are free too. The exact dimensions and the files of a plan are a one-time purchase, ₹499 for that plan. If you would rather have the plan finished for you, our designer does it for ₹2,999.
Can I edit the floor plan the AI creates?
Yes, and it costs nothing. The AI's plan is a starting point: every wall it draws is a real object with real dimensions rather than a line in a picture. Move walls, resize and rename rooms, and add doors, windows, furniture, stairs and floors as you like — and if it is not the house you pictured at all, change your brief and generate again.
Can I edit the plan by chatting?
Yes. Once a plan is drawn, type what you want in plain words — “make the kitchen 2 ft wider”, “rename bedroom 2 to Study”, “add a window to the kitchen”, “swap the bedrooms” — and the copilot makes the change on the plan you already have. It answers questions about the plan too, like “how big is the master bedroom?”. A bigger change, such as “make it 3 BHK” or “make it vastu compliant”, needs a fresh layout, so it offers to redraw the whole plan and asks before it does. It understands Hindi and Hinglish as well as English, and when it cannot do something it says so plainly. Editing by hand never costs anything.

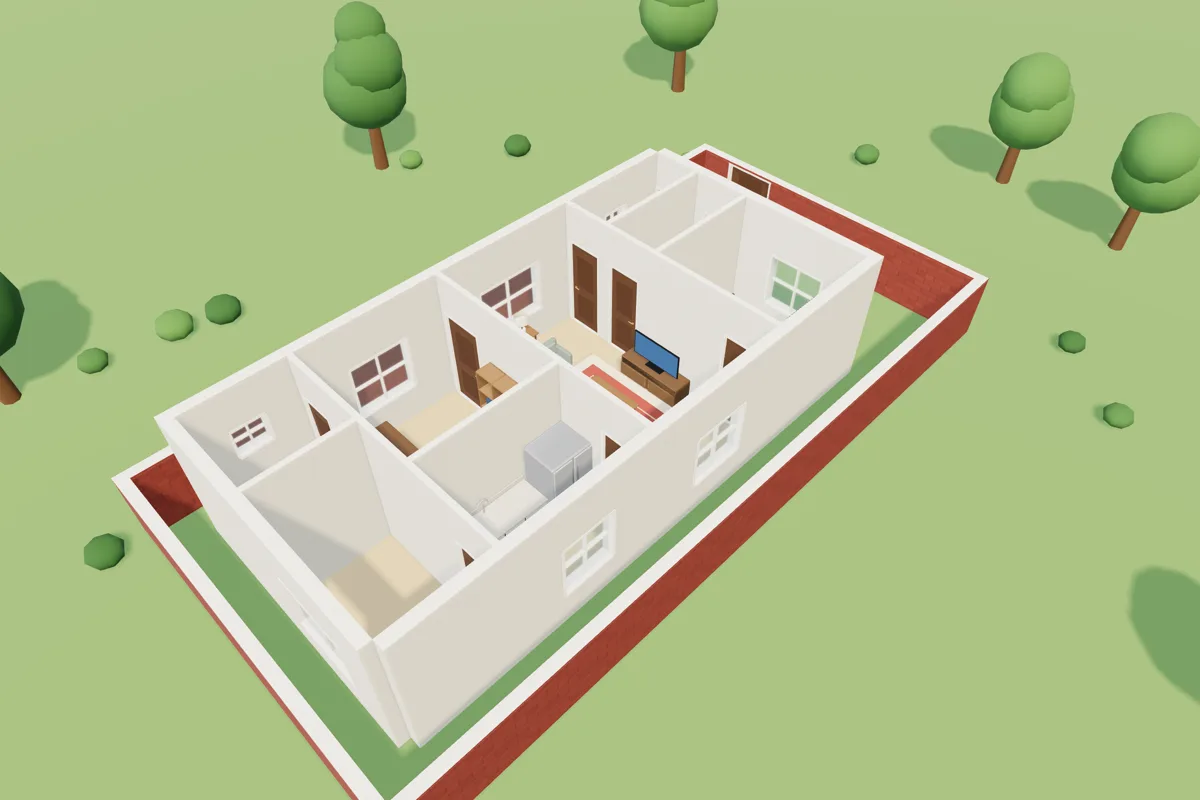

Can I see my house in 3D?
Yes. Any plan can be viewed as a 3D model with walls, floors, doors, windows and furniture in place. You can take a guided walk in from the street or move through the rooms yourself, and the model is built from the plan itself, so it always shows the house as currently drawn.
What plot sizes does it support?
Any size. Common sizes are one tap away in both feet and metres — 20×30, 30×40, 30×50 and 40×60 ft, or 9×12 and 10×15 m — and you can type your own width and depth instead. Switch between feet and metres whenever you like.
Can I download my plan?
Yes. A plan's dimensioned plan sheet is a one-time purchase in the editor, ₹499 for that plan: every measurement, the door and window schedule and a title block, together with the plan's image and its plan file, without a watermark. Sending someone a share link is free, and opening a link someone sends you is free too, with no account on their side.
Can a designer finish my plan for me?
Yes. Our designer takes your AI layout (or a sketch, or just your plot details), fits it to your plot boundary and setbacks, dimensions every room, adds a door and window schedule, checks vastu if you follow it, and delivers a print-ready sheet in 48–72 hours for ₹2,999, one-time, with 2 rounds of changes included. It starts with a WhatsApp message, and the conversation is free.
Do I need an account?
No. Open the app and start describing your house straight away — no sign-up, no email, no card. An account is only useful if you want your plans saved to the cloud so you can pick them up on another device.
