20×40 House Plans (800 sq ft) — Free AI Naksha Generator
A 20 × 40 ft plot — 6.1 × 12.2 m, 800 sq ft — is a narrow strip, and the shape matters more than the area. Twenty feet is barely two rooms across once the walls are counted, so a 20 × 40 is really a house read front to back: entrance, living space, kitchen, bedrooms, in a line down the depth rather than spread across the width.
That extra ten feet of depth over a 20 × 30 is worth having. It is the difference between a bedroom and a bedroom with a wardrobe, or between a kitchen corner and a kitchen with a dining table beside it. Tell HousePlanAI you have a 20 × 40 and how your household actually uses its rooms, and it drafts the whole footprint — walls, doors, windows, room names and areas, and the boundary wall — at real dimensions you can check.
Start a 20×40 plan — plot size already filled in

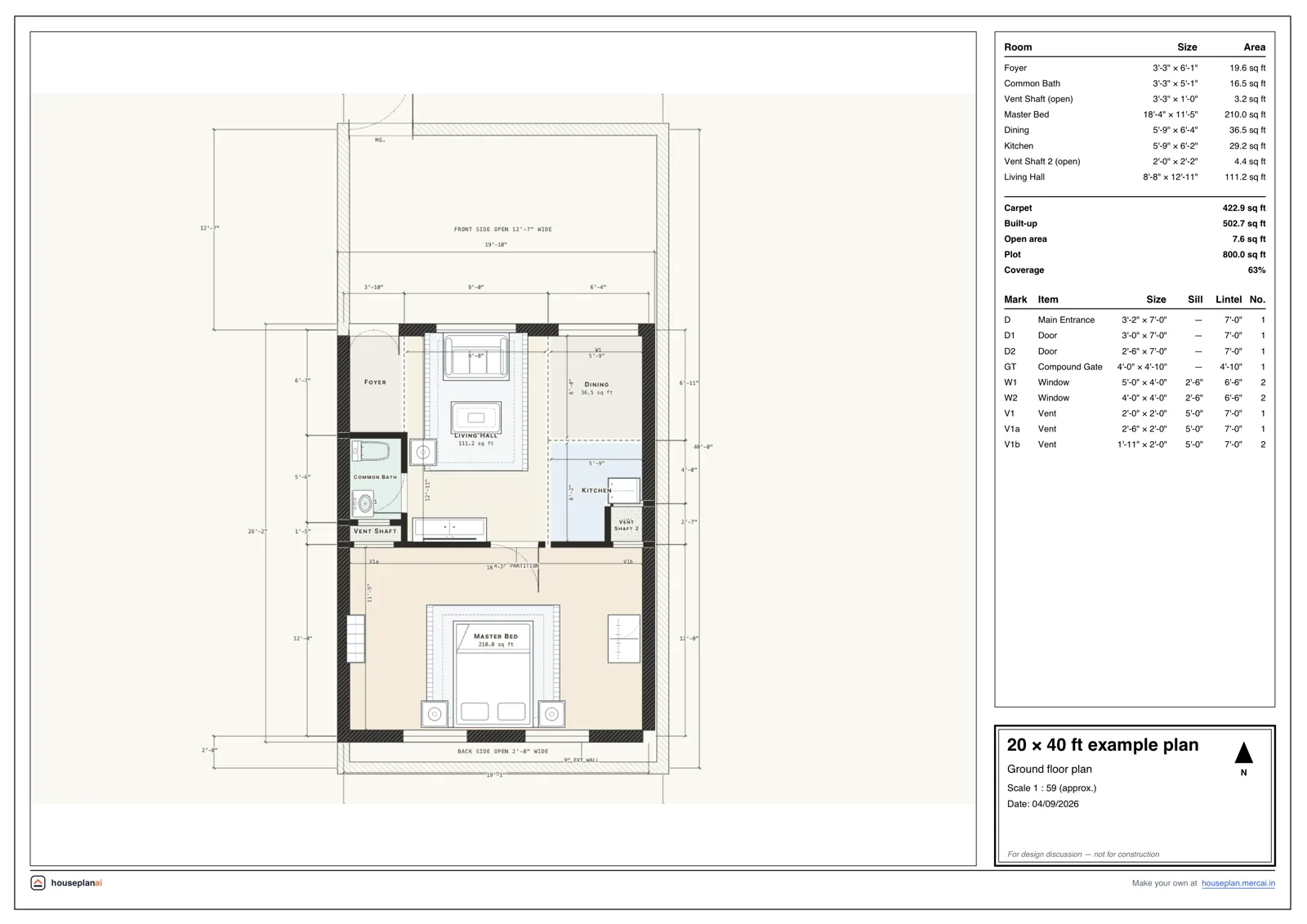

Example 20 × 40 ft plan
What fits on a 20 × 40 ft plot
| What you want | Floors | How it works out |
|---|---|---|
| 1 bedroom, living, kitchen, bathroom | Single floor | Comfortable, with room left over for a dining area or a study. |
| 2 bedrooms, living, kitchen, 2 bathrooms | Single floor | Fits, but both bedrooms are compact and the dining folds into the living space. |
| 3 bedrooms, living, kitchen, 2–3 bathrooms | Two floors | The honest answer for 3BHK here — one floor cannot hold it without shrinking every room. |
Bedrooms on a narrow plot get compact before they get dropped. HousePlanAI will squeeze rooms down towards a floor of about 80 sq ft — roughly 8 × 10 ft — before it gives up on a layout, so a 2BHK on one floor here is genuinely a 2BHK, just not a spacious one. If that sounds tight, ask for two floors and the same rooms get their space back.
How much of the 800 sq ft you may build on is set by the setback and coverage rules where you live, and HousePlanAI does not know them and does not check them. On a 20 ft frontage the party-wall question matters especially: some places allow building right up to both side boundaries and some do not. Confirm yours before you commit.
Light is the thing to watch on a plot this narrow. With walls on both sides, windows can only face the front and the back, so the rooms at either end get the daylight and anything in the middle depends on the living space to borrow it. Put the rooms people sit in at the two ends and the bathrooms and stair in the middle — that is what a good 20 × 40 ghar ka naksha does with the shape it is given.
Setbacks and buildable area on a 20 × 40 ft plot
A 20 ft frontage is too narrow to hold a ventilation gap on each side and still leave usable rooms behind, so HousePlanAI plans a 20 × 40 as a row plot: party walls on both boundaries, no side gap, and the full 20 ft of frontage built on. That is how narrow sites are actually built, and it is the only way the width yields rooms wide enough to furnish.
The open ground goes where it earns its keep — 4 ft at the front for the entrance and 2 ft at the back as a service strip for a drain, a meter and windows that open. What is left is a buildable envelope of about 20 × 34 ft, roughly 680 sq ft of footprint per floor out of the plot's 800.
None of that is a legal position. Setback, coverage and party-wall rules differ from one city — sometimes one street — to the next, and the generator neither knows them nor checks them. Find out what applies to your plot first; if your rules leave you less, describe that smaller footprint and the plan is drawn to it instead.
Variants people search for
East facing, west facing, north facing and south facing 20 × 40 plans are the same plot turned, not four different houses. The first number is always the frontage — the edge along the road — so the 20 ft face stays to the street whichever compass direction that street points, and only the direction the entrance opens changes. Say which way yours faces and the gate, the main door and the windows are placed for it.
A 20 × 40 duplex is the usual route to three bedrooms. Two floors on this envelope come to roughly 1,292 sq ft of built-up area before the staircase takes its share out of both levels. Ask for two floors when you describe the house and the stair, the landing and the stairwell opening in the slab above are all drawn, and the 3D walkthrough takes you up them.
Parking is a real trade-off at this width. One car bay needs about 9.5 ft of clear width and 15 ft of length, and on a frontage of 20 ft that is close to half the front row of the house — drawn as open ground at a front corner, with no gate across it. The rest of the frontage still takes the entrance and a room beside it, but that room will be a narrow one. Two cars are not realistic here; a two-wheeler fits in the 4 ft front gap for nothing.
Ghar ka naksha for a 20×40 plot
House plan, floor plan, naksha — the same drawing under three names, and this is where you get one. The plot size is already filled in. Answer a few questions about how you live and HousePlanAI drafts a real, scaled plan for it — rooms, doors, windows and stairs — to look over in 2D, walk through in 3D and price. Starting is free and takes no sign-up.
Start a 20 × 40 ft planQuestions people ask
How many bedrooms fit in a 20×40 house plan?
One bedroom fits comfortably on a single floor of a 20 × 40 ft plot, with room to spare for a dining area. Two bedrooms fit if both are compact and the rooms open off the living space rather than a corridor. Three bedrooms need a second floor.
Can I fit a car in a 20×40 plan?
Yes, one car, but it costs you room width. A 20 × 40 is planned as a row plot — party walls both sides, the whole 20 ft of frontage built on — and a single bay needs about 9.5 ft of clear width and 15 ft of length, drawn as open ground at a front corner with the compound wall left open across it. That leaves roughly 10.5 ft of frontage for the entrance and whatever sits beside it. Two cars will not fit; a two-wheeler parks in the 4 ft front gap without taking anything from the house.
Is 3BHK possible on 20×40?
Not comfortably on one floor. The buildable envelope is about 20 × 34 ft — near 680 sq ft a floor — which is a generous 1BHK or a compact 2BHK once the living space, kitchen and bathrooms have taken their share. Squeezing a third bedroom in shrinks all three towards the minimum usable size. Ask for two floors and 3BHK is straightforward, with the staircase taking its share of each level.
What does a 20×40 house cost to build?
Approximately ₹13–16 lakh for a single floor on this plot, and ₹24–31 lakh for a G+1. Those are rough figures for India, state capitals and large cities — the app's default Indian rate of ₹1,800 per built-up sq ft at standard quality — covering structure, flooring, doors and windows, wall finishes and the compound wall. Your city, your specification and your builder all move the number; the cost panel in the app re-prices the plan for your own region and lets you type your builder's rate over ours.
Is HousePlanAI free?
Yes — the AI layout for your plot is free, and your first plan needs no account and no card. Looking around in 2D and 3D, editing by hand and sharing are free too. The exact dimensions and the files of a plan are a one-time purchase, ₹499 for that plan. If you would rather have the plan finished for you, our designer does it for ₹2,999.
Can I edit the floor plan the AI creates?
Yes, and it costs nothing. The AI's plan is a starting point: every wall it draws is a real object with real dimensions rather than a line in a picture. Move walls, resize and rename rooms, and add doors, windows, furniture, stairs and floors as you like — and if it is not the house you pictured at all, change your brief and generate again.
Can I edit the plan by chatting?
Yes. Once a plan is drawn, type what you want in plain words — “make the kitchen 2 ft wider”, “rename bedroom 2 to Study”, “add a window to the kitchen”, “swap the bedrooms” — and the copilot makes the change on the plan you already have. It answers questions about the plan too, like “how big is the master bedroom?”. A bigger change, such as “make it 3 BHK” or “make it vastu compliant”, needs a fresh layout, so it offers to redraw the whole plan and asks before it does. It understands Hindi and Hinglish as well as English, and when it cannot do something it says so plainly. Editing by hand never costs anything.
Can I see my house in 3D?
Yes. Any plan can be viewed as a 3D model with walls, floors, doors, windows and furniture in place. You can take a guided walk in from the street or move through the rooms yourself, and the model is built from the plan itself, so it always shows the house as currently drawn.
What plot sizes does it support?
Any size. Common sizes are one tap away in both feet and metres — 20×30, 30×40, 30×50 and 40×60 ft, or 9×12 and 10×15 m — and you can type your own width and depth instead. Switch between feet and metres whenever you like.
Can I download my plan?
Yes. A plan's dimensioned plan sheet is a one-time purchase in the editor, ₹499 for that plan: every measurement, the door and window schedule and a title block, together with the plan's image and its plan file, without a watermark. Sending someone a share link is free, and opening a link someone sends you is free too, with no account on their side.
Can a designer finish my plan for me?
Yes. Our designer takes your AI layout (or a sketch, or just your plot details), fits it to your plot boundary and setbacks, dimensions every room, adds a door and window schedule, checks vastu if you follow it, and delivers a print-ready sheet in 48–72 hours for ₹2,999, one-time, with 2 rounds of changes included. It starts with a WhatsApp message, and the conversation is free.
Do I need an account?
No. Open the app and start describing your house straight away — no sign-up, no email, no card. An account is only useful if you want your plans saved to the cloud so you can pick them up on another device.
