20×50 House Plans (1,000 sq ft) — Free AI Naksha Generator
A 20 × 50 ft plot — 6.1 × 15.2 m, 1,000 sq ft — is a long, narrow site: more than twice as deep as it is wide. That shape gives you plenty of floor area, and it hands you one problem to solve well. Everything has to be reached from the front, so the way you get from the entrance to the back room decides how much of the plot is house and how much is passage.
The layouts that work here spend as little as possible on circulation: rooms opening straight off the living space rather than off a corridor, and the kitchen and dining sharing one area instead of each having their own walls. Tell HousePlanAI you have a 20 × 50 and how many bedrooms you need, and it drafts the whole footprint at real dimensions — walls, doors, windows, room names and areas, and the boundary wall around the plot.
Start a 20×50 plan — plot size already filled in

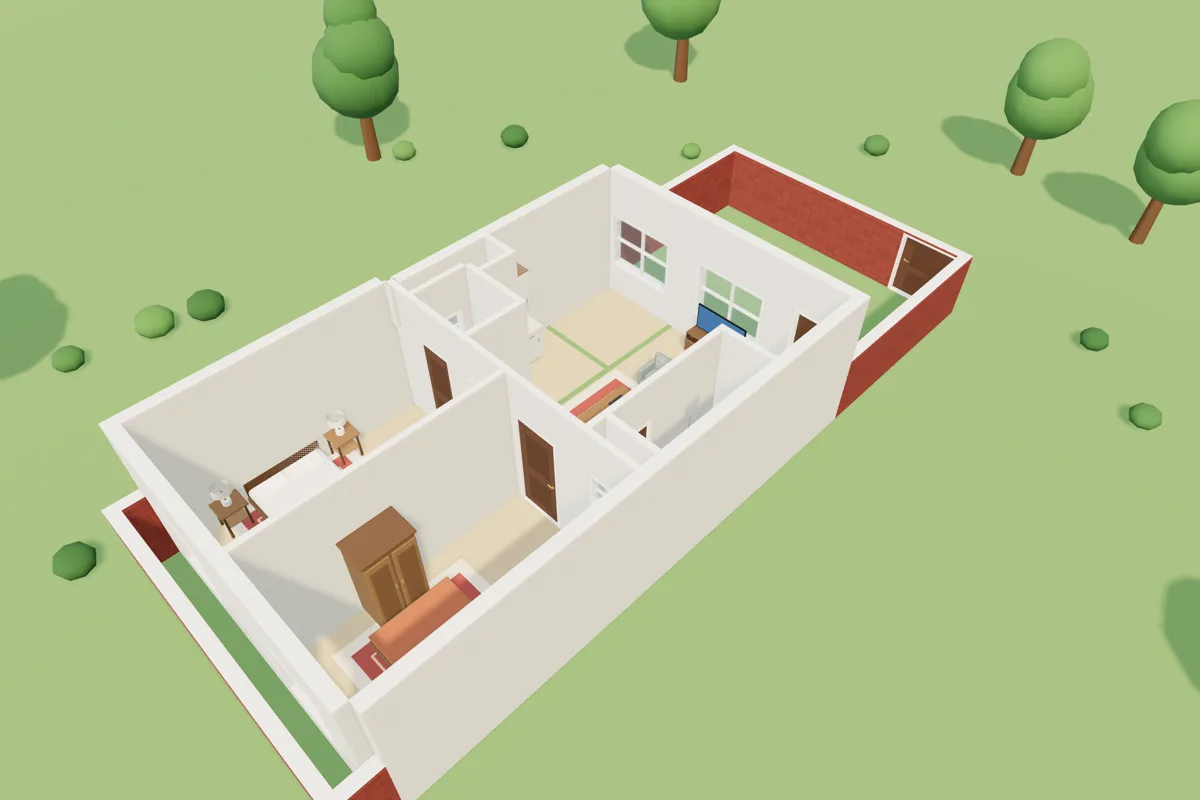

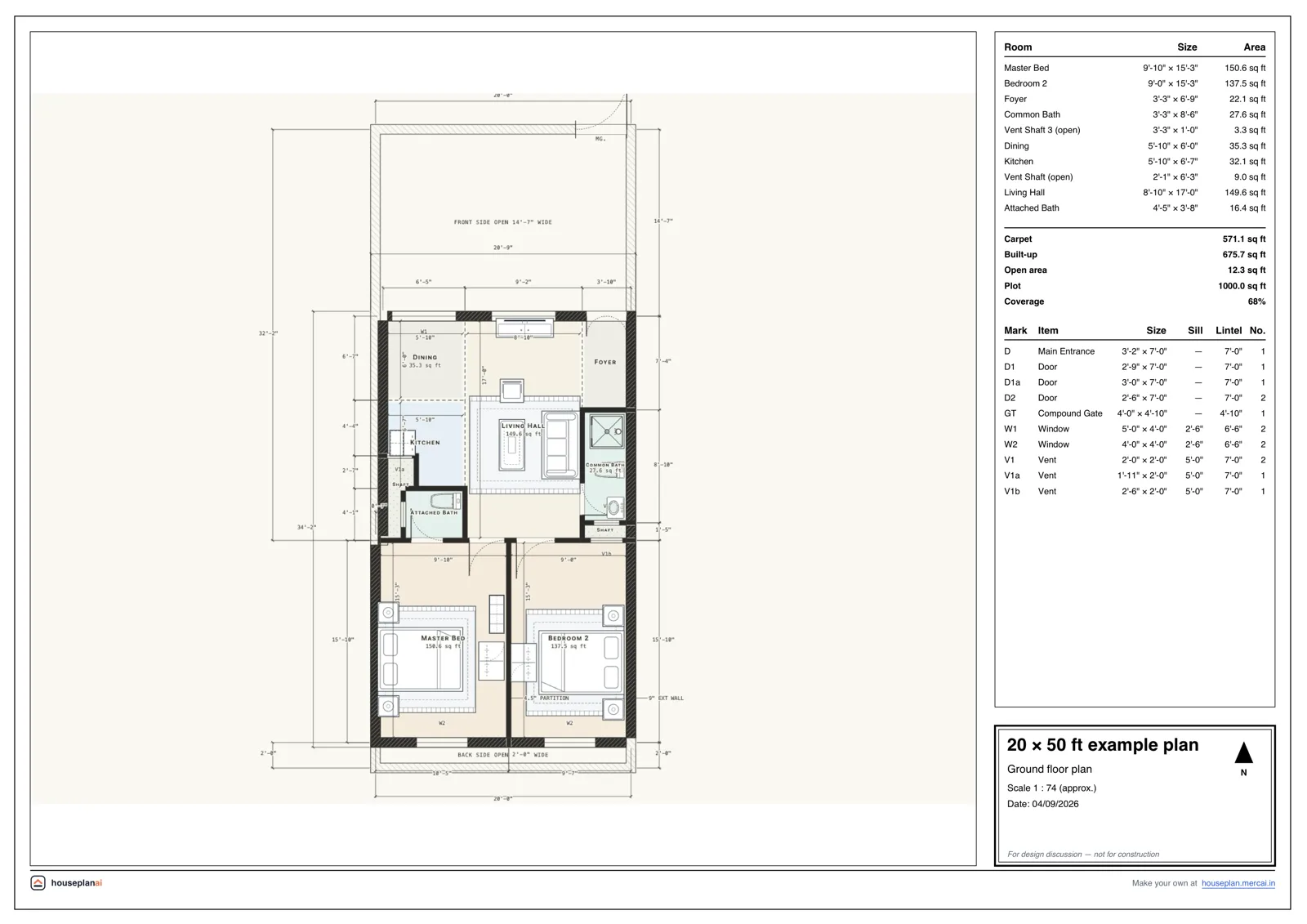

Example 20 × 50 ft plan
What fits on a 20 × 50 ft plot
| What you want | Floors | How it works out |
|---|---|---|
| 2 bedrooms, living, dining, kitchen, 2 bathrooms | Single floor | Comfortable — the depth pays for a dining area a 20 × 40 has to give up. |
| 3 bedrooms, living, kitchen, 2 bathrooms | Single floor | Fits on paper, but the third bedroom ends up in the middle of the plan with no outside wall. |
| 3–4 bedrooms, plus a family area | Two floors | The better answer for 3BHK: the same depth, with the bedrooms upstairs where they get end walls. |
Light and air are the constraint on this shape, not floor area. With party walls down both sides, windows can only face the front and the back, so the rooms at the two ends get daylight and anything stranded in the middle does not. Put the bedrooms and the living space at the ends, and the bathrooms, the store and the stair in the middle where a window matters least.
Keep the route from the front door to the back of the house as short and as useful as you can. A corridor running the length of a 20 ft-wide plot would take a fifth of the width for nothing but walking, which is why a good 20 × 50 ghar ka naksha threads its circulation through the living space instead of beside it.
How much of the 1,000 sq ft you may build on comes from the setback and coverage rules where you live. HousePlanAI does not know them and does not check them, and on a deep plot the rear setback is the one that most often differs from what the generator assumes — look it up, then describe the footprint your rules leave you.
Setbacks and buildable area on a 20 × 50 ft plot
A 20 ft frontage is too narrow to keep a ventilation gap on each side and still leave rooms worth having, so HousePlanAI plans a 20 × 50 as a row plot: party walls on both boundaries, no side gap, and the full 20 ft of frontage built on.
On a plot this deep the front gap grows a little — 5 ft here for the approach and the entrance — with 2 ft kept at the back as a service strip for a drain, a meter and windows that open. That leaves a buildable envelope of about 20 × 43 ft, roughly 860 sq ft of footprint per floor: more house than a 25 × 40 of the same plot area gets, but with the daylight coming from two ends rather than a wide front.
Those are the generator's own defaults, not a building code. Setback, coverage and party-wall rules vary from one city — sometimes one street — to the next, and nothing in the app checks them. Confirm what applies to your plot before you build.
Variants people search for
East facing, west facing, north facing and south facing 20 × 50 plans are the same plot turned, not four designs. The first number is the frontage — the edge along the road — so the 20 ft face stays to the street whichever way that street points, and only the compass direction of the entrance changes. On a deep plot that direction decides which end of the house gets the morning sun, so it is worth telling the copilot which way yours faces before it draws.
A 20 × 50 duplex is the natural way to get a third bedroom without stranding it in the middle of the ground floor. Two floors on this envelope come to roughly 1,634 sq ft of built-up area before the staircase takes its share out of both levels. Say two floors when you describe the house; left to itself the generator compacts rooms and folds the dining into the living space rather than going upstairs.
Parking costs room width here. A single bay needs about 9.5 ft of clear width and 15 ft of length, and against a 20 ft frontage that is close to half the front row — drawn as open ground at a front corner with no gate across it. The remaining 10.5 ft still takes the entrance, but the room beside it becomes a narrow one; on a deep plot, many owners would rather keep the full frontage for the house and park a two-wheeler in the 5 ft front gap.
Ghar ka naksha for a 20×50 plot
House plan, floor plan, naksha — the same drawing under three names, and this is where you get one. The plot size is already filled in. Answer a few questions about how you live and HousePlanAI drafts a real, scaled plan for it — rooms, doors, windows and stairs — to look over in 2D, walk through in 3D and price. Starting is free and takes no sign-up.
Start a 20 × 50 ft planQuestions people ask
How should a long narrow 20×50 plot be laid out?
Front to back, with as little corridor as possible: the living space near the entrance, the kitchen and dining sharing one area, and the bedrooms at the ends where the windows are. With party walls on both sides, only the front and back walls can carry windows, so the middle of the plan is the right place for bathrooms, storage and the staircase.
Can I fit a car in a 20×50 plan?
Yes, one car, at the cost of some room width. A 20 × 50 is planned as a row plot — party walls both sides, the whole 20 ft of frontage built on — and a bay needs about 9.5 ft of clear width and 15 ft of length, drawn as open ground at a front corner with the compound wall left open across it. That leaves roughly 10.5 ft of frontage for the entrance and a narrow room beside it. Two cars will not fit; a two-wheeler parks in the 5 ft front gap for nothing.
Is 3BHK possible on 20×50?
On one floor it fits but does not sit well — the buildable envelope is about 20 × 43 ft, near 860 sq ft, which is area enough for three bedrooms, but only two ends of the plan have outside walls, so the third bedroom lands in the middle without a window of its own. Ask for two floors and 3BHK is comfortable: two bedrooms upstairs at the two ends, the living space and kitchen below.
What does a 20×50 house cost to build?
Approximately ₹16–20 lakh for a single floor on this plot, and ₹30–39 lakh for a G+1. Those are rough figures for India, state capitals and large cities — the app's default Indian rate of ₹1,800 per built-up sq ft at standard quality — covering structure, flooring, doors and windows, wall finishes and the compound wall. City, specification and builder all move the number; the cost panel in the app re-prices the plan for your own region and rate.
Is HousePlanAI free?
You can start without a card and without an account: describe your house, generate a plan and look around it in 2D and in 3D. A free account is optional, and what it gives you is your plans kept in the cloud rather than only in this browser. If a price applies to anything beyond that, you will see it before you pay, and it is one payment rather than a subscription.
Can I edit the floor plan the AI creates?
The AI's plan is a starting point, not a finished answer. Every wall it draws is a real object with real dimensions rather than a line in a picture, so the rooms and areas are the ones you would actually get. If it is not the house you pictured, change your brief and generate again. Reworking the drawing itself comes with full access; if a price applies, you will see it before you pay, and it is one payment rather than a subscription.
Can I see my house in 3D?
Yes. Any plan can be viewed as a 3D model with walls, floors, doors, windows and furniture in place. You can take a guided walk in from the street or move through the rooms yourself, and the model is built from the plan itself, so it always shows the house as currently drawn.
What plot sizes does it support?
Any size. Common sizes are one tap away in both feet and metres — 20×30, 30×40, 30×50 and 40×60 ft, or 9×12 and 10×15 m — and you can type your own width and depth instead. Switch between feet and metres whenever you like.
Can I download my plan?
A finished plan can leave the browser three ways: as an A3 plan sheet — a PDF with dimensions, room areas and a title block — as an image of the drawing, or as a share link that opens the plan in anyone's browser. Opening a link someone sends you is always free, with no account on their side. If a price applies to taking a plan out, you will see it before you pay, and it is one payment rather than a subscription.
Do I need an account?
No. Open the app and start describing your house straight away — no sign-up, no email, no card. An account is only useful if you want your plans saved to the cloud so you can pick them up on another device.
